TMC2130-EVAL-KIT: Stepper, 1.1A/Phase @ 4.75 ~ 46V

Summary

TMC2130-EVAL-KIT is a set of one MCU Board "Landungsbrücke", a bridge Board and one TMC2130-EVAL driver Board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

For Diagnosis all Signals between MCU and TMC2130 are accessible with probes on the "Eselsbrücke" Bridgeboard.

To simplify the transfer to your own processor platform the MCU board can be disconnected.Additionally required is a Power Supply (max. 46V).

Specifications

Manufacturer Analog Devices Inc.
Category Motor Control
Eval Board Part Number 505-TMC2130-EVAL-KIT-ND
Eval Board Supplier Analog Devices Inc./Maxim Integrated
Eval Board Normally In Stock
Voltage In 4.75 ~ 46 V
Number of Motors and Type 1, Stepper Motor, BiPolar
Power / Current Out 1.1 A
Features GUI / Design Software
Microstepping
Over Current Protection
Short Circuit Protection
SPI Interface
Under Voltage Protection, Brown-Out
Component Count + Extras 34 + 5
Application / Target Market Digital Cameras
Printer, Plotter
Robotics
Security IP Camera
Design Author TRINAMIC
Main I.C. Base Part TMC2130
Date Created By Author 2016-11
Date Added To Library 2018-09

Eval Board

Order a fully assembled board:

Quantity Available: 0

Quantity:

Support Documents & Media

TMC2130-LA Datasheet LANDUNGSBRUCKE - MCU Board Overview TMC2130-EVAL - Eagle Files TMC2130-EVAL - Gerber Files TMC2130-EVAL - Schematic and Layout Data TMC2130-EVAL - Schematic Pack

Media

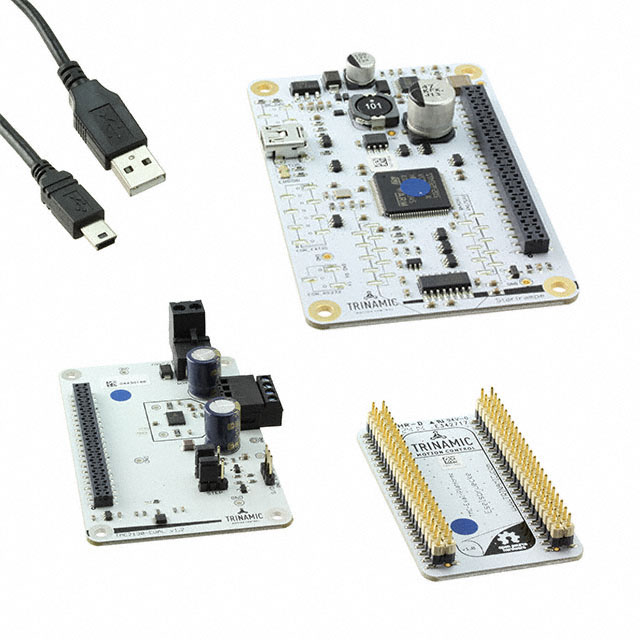

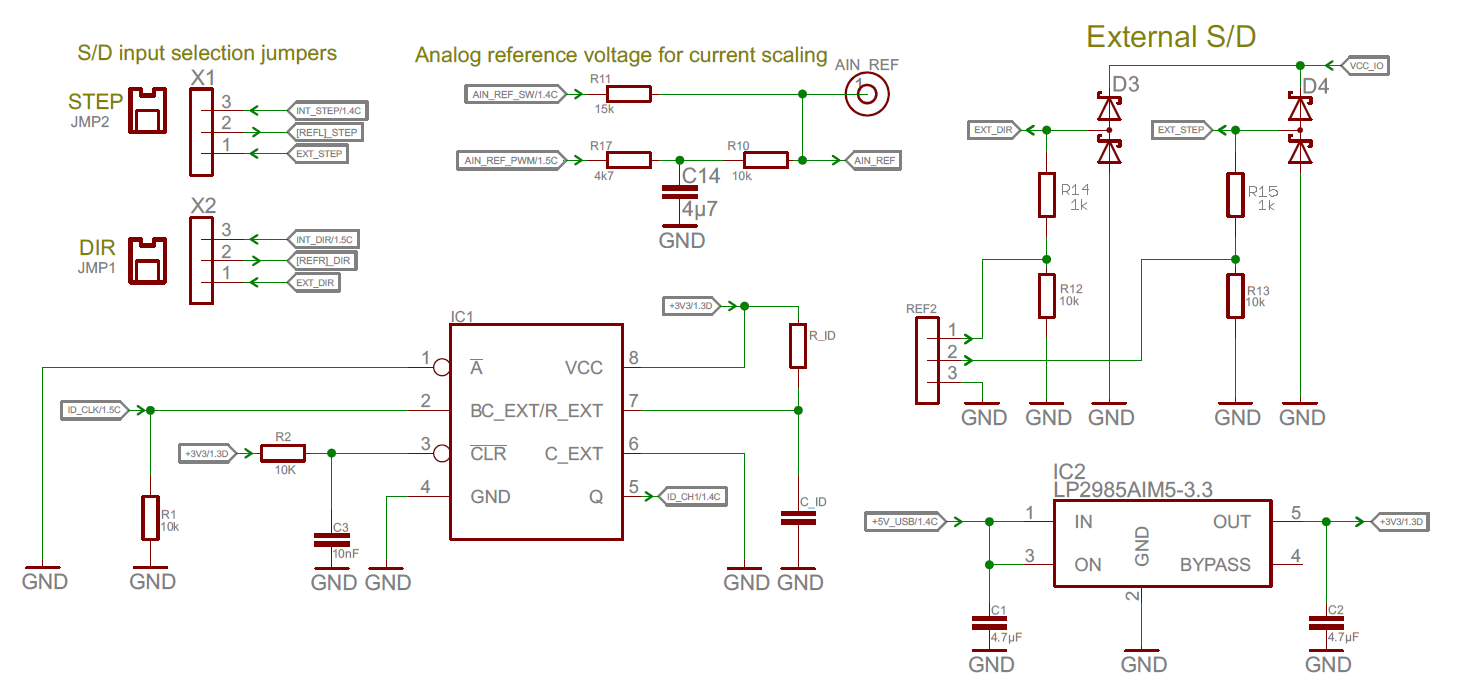

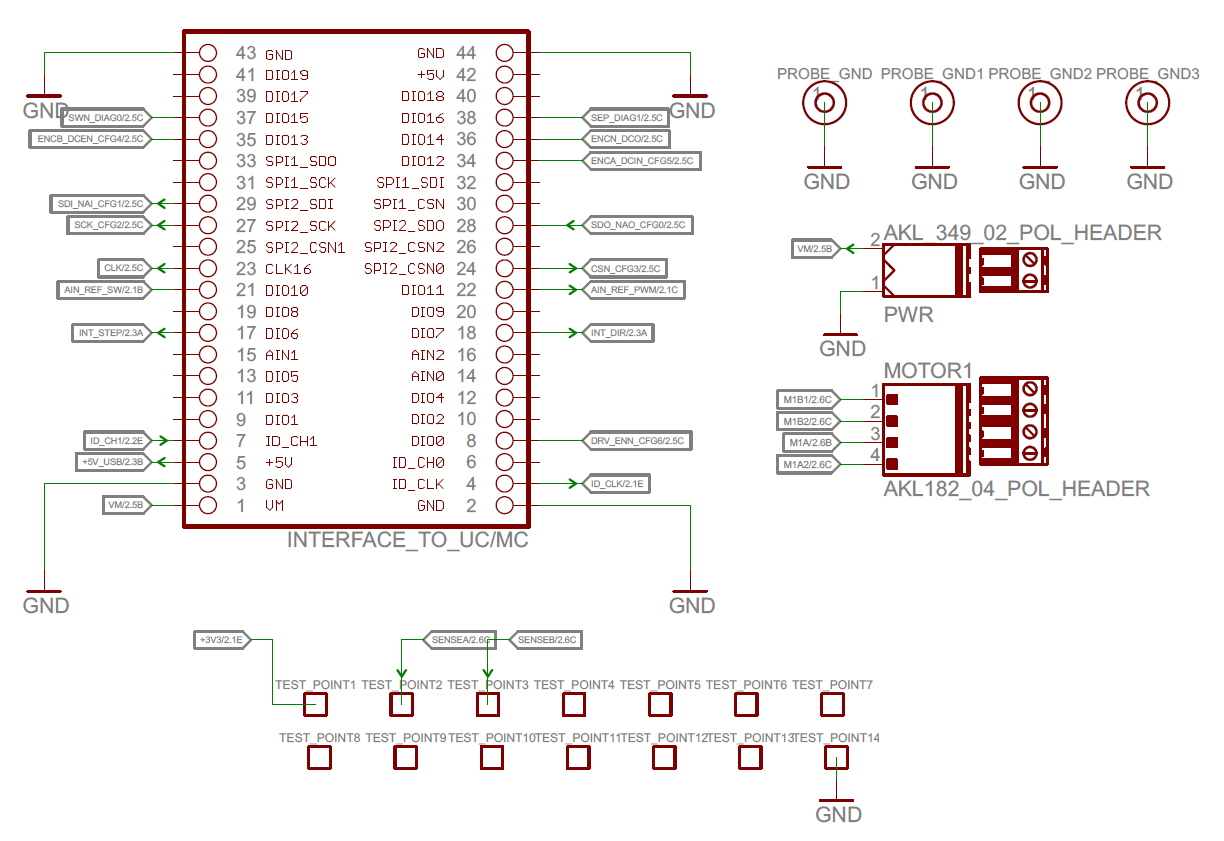

TMC2130-EVAL - Schematic 1 TMC2130-EVAL - Schematic 2 TMC2130-EVAL - Schematic 3 TMC2130-EVAL-KIT - Board
