Product List

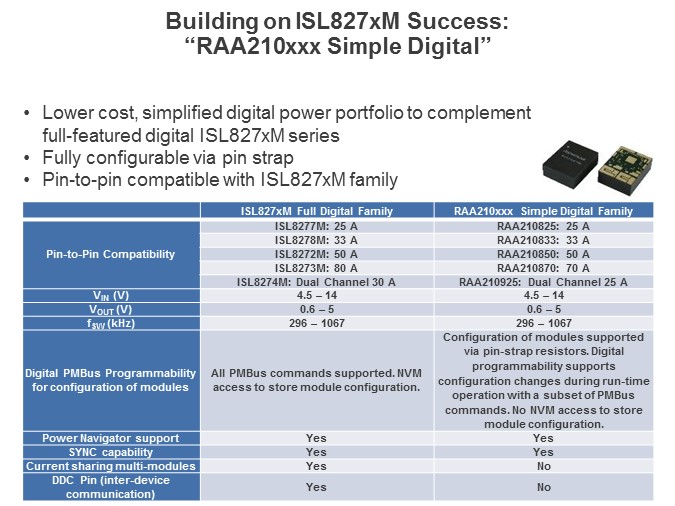

As mentioned in the previous slide, the simple digital modules are pin-compatible with the existing ISL827xM family. Shown here are some key differences between the existing ISL827xM portfolio and the RAA210 simple digital family. The power modules are fully configurable via pin-strap resistor settings, eliminating the need for NVM access to store configuration files. Full power supply telemetry, including output voltage, output current, fault status, and thermal management is supported, which improves reliability and system uptime.
