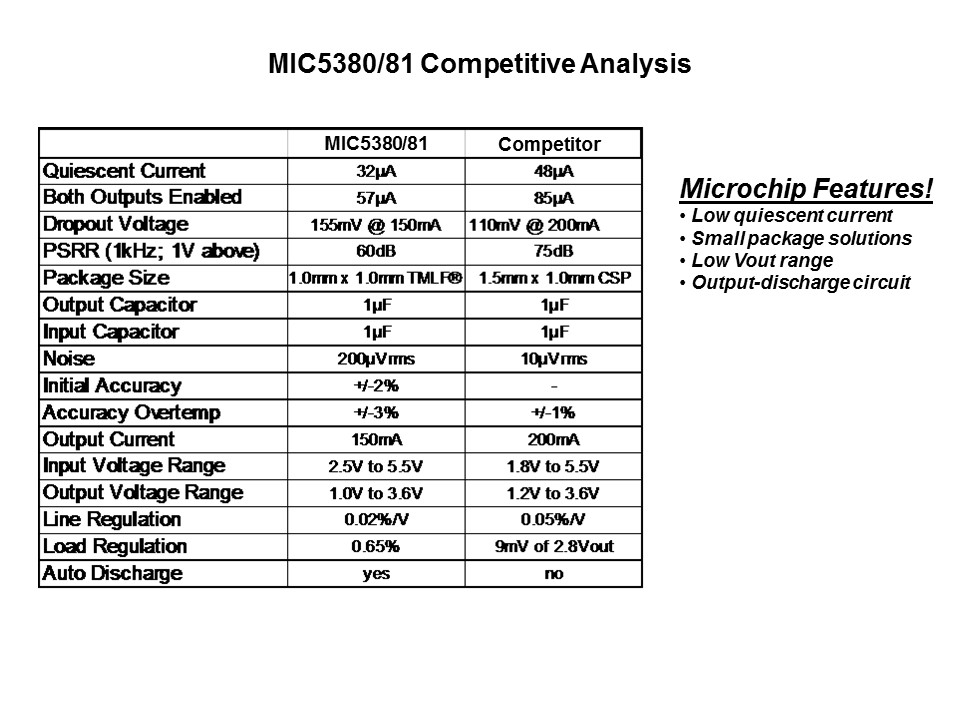

Comp Analysis

Currently in the market, there is no one who can offer this size LDO. The closest competitor’s dual LDO in the market is a 1.5mm x 1.0mm CSP solution. In regards to a leaded package, no one comes close to Microchip’s 1mm x 1mm leaded package. Also, the MIC5380/81 has a similar performance with a lower quiescent current, which means there is better performance in a smaller package. In addition, Microchip offers a wider output range.

PTM Published on: 2011-11-01
