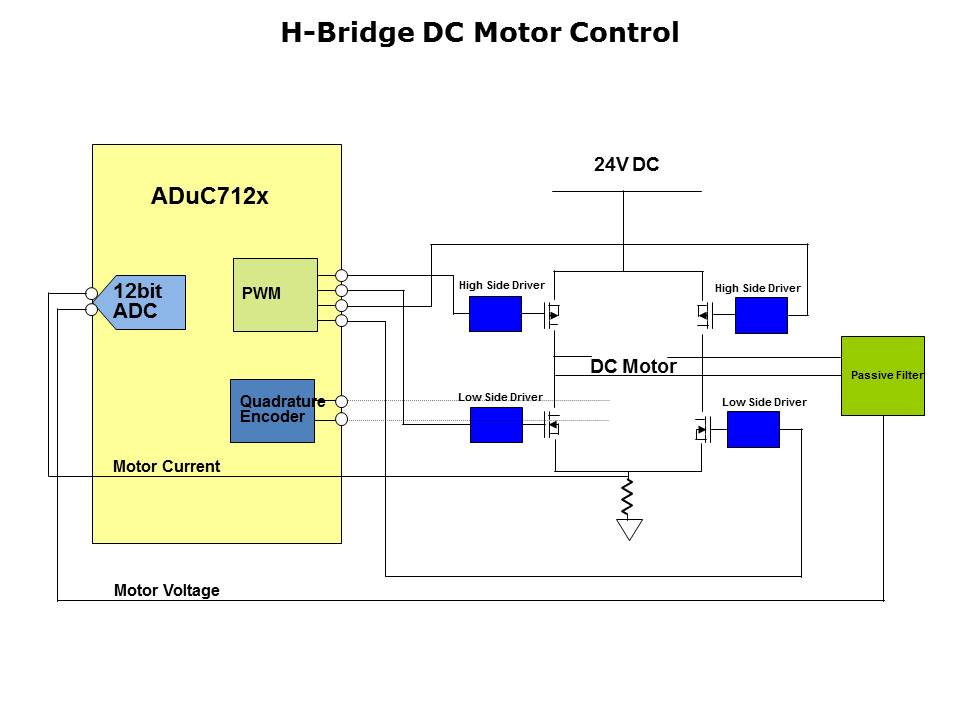

This chart shows a simple example of the ADuC7128 part in a DC motor control application. The PWM is used here to control the four drivers in an H-bridge DC motor while the Quadrature encoder monitors the shaft position.
PTM Published on: 2006-06-30
