Chip LAN Transformer Module - Model SM41126EL Series

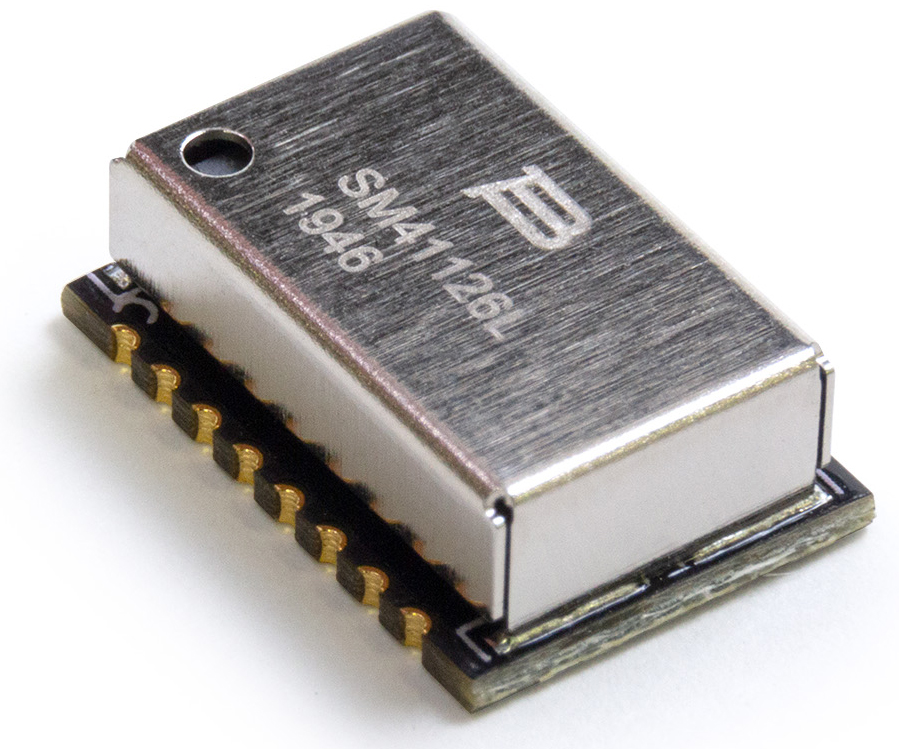

Bourns's magnetics product line introduces the Model SM41126EL Chip LAN 10/100 Base-T transformer module. This transformer is constructed with discrete chip LAN transformers and common mode chokes assembled on a PCB with a ferrous metal shield.

The model SM41126EL module integrates two model SM453229-381N7Y chip LAN transformers and two model SRF2012A-801Y common mode chip inductors which offers customers a quick and simple assembly solution. It is pin-to-pin compatible with the traditional potted case LAN transformer and offers a lower profile and superior coplanarity.

The chip LAN transformer module is fully compliant with IEEE 802.3 and is ideal for use in LAN interfaces in a variety of telecommunication and network devices.

Applications

• LAN interface in telecommunications and network devices
