S32K39/37 MCUs for Electrification Applications
NXP's MCUs offer a compelling combination of performance, integration, networking, security, and functional safety capabilities

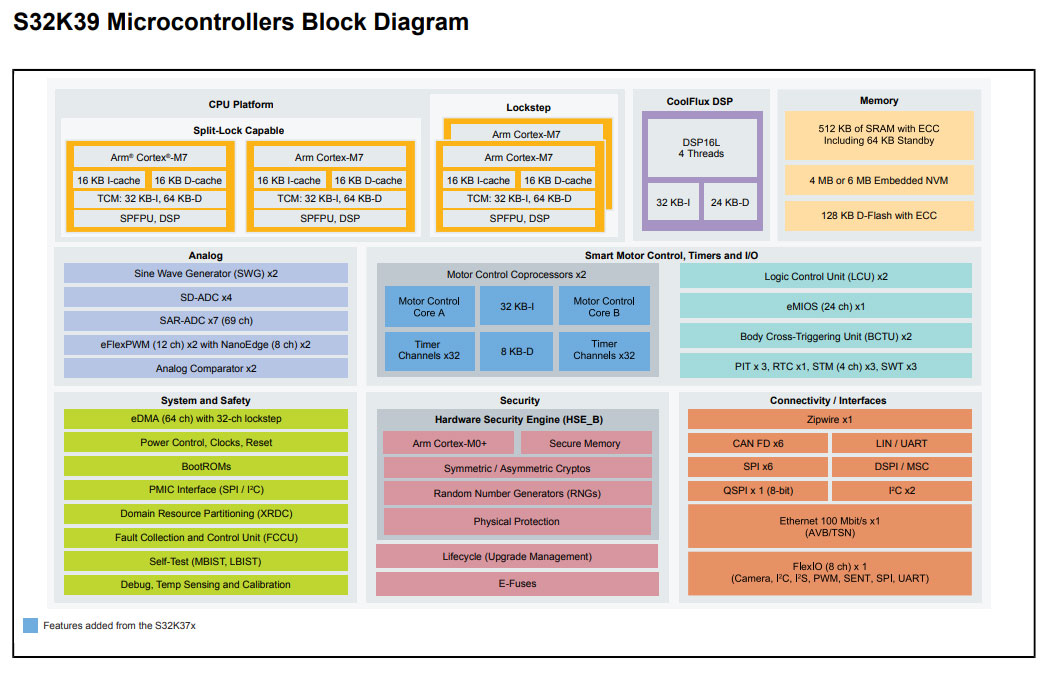

NXP's S32K39/37 is a purpose-built device addressing electric vehicle (EV) traction inverter control needs with a compelling combination of performance, integration, networking, security, and functional safety capabilities.
It has enough computer power to support one six-phase or two three-phase motors controlled by over 200 kHz control loops while hosting AI/ML algorithms or other monitoring applications. It supports remote smart actuation applications using time-sensitive networking (TSN) Ethernet for zonal vehicle architectures. It also reduces system cost with ASIL D software resolver and analog integration.
The portfolio scalability and future-proof features, such as advanced security and software, tools, and third-party development support, allow developers to standardize the S32K39/37 series for their end-product platforms, maximizing the reuse of hardware and software. This functionality also reduces the time-to-market of these chips.

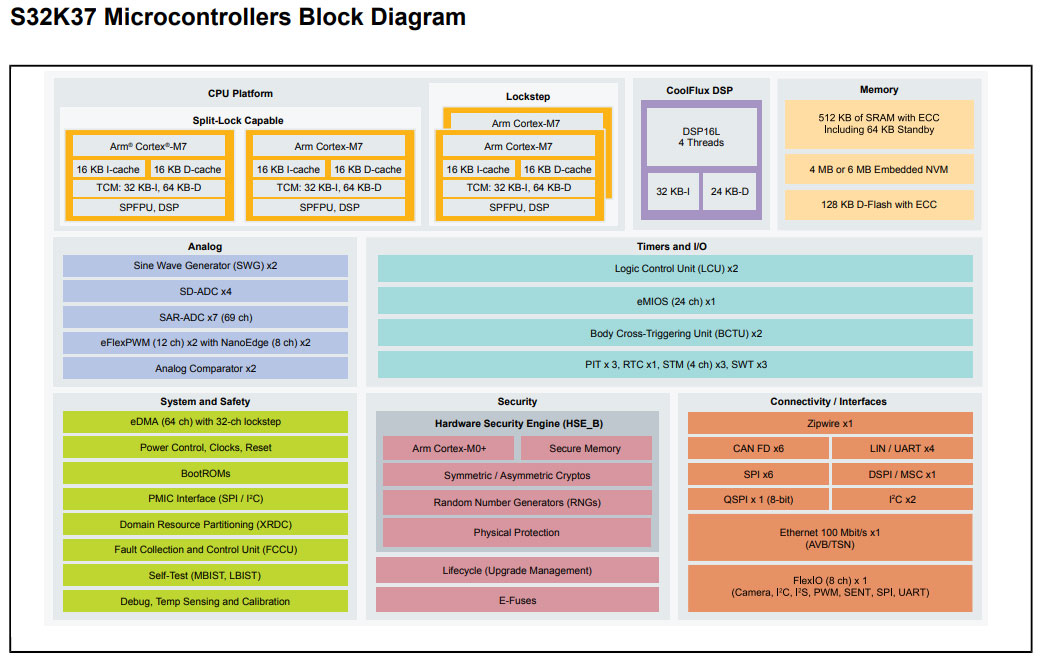

The S32K37's high-computer capabilities are ideal for high-end battery management systems (BMS) applications.
- Computer
- Three Arm® Cortex®-M7 cores running at 320 MHz
- One lockstep core pair
- Two split-lock configurable cores
- Two motor control coprocessors running at 320 MHz (S32K39 only)
- Programmable CoolFlux™ DSP running at 160 MHz
- Memory
- 4 MB or 6 MB embedded Flash memory with ECC
- 800 KB SRAM
- Smart timers
- Two eFlexPWM (12 ch.) with NanoEdge (8 ch.)
- One eMIOS (24 ch.)
- Two logic control units (LCU)
- Analog-to-digital
- Seven SAR-ADCs (69 ch.)
- Four sigma-delta ADCs
- Two sine wave generators (SWG)
- Two analog comparators
- Communications
- One Ethernet interface with TSN support (10/100 Mbps)
- One zipwire high-speed interface for memory sharing between MCUs
- Six CAN/CAN-FD
- Four LIN/UART
- Two I2C
- Eight channel FlexIO emulating UART, I2C, SPI, I2S, SENT, and PWM
- Six SPI
- Functional safety
- ISO 26262 up to ASIL D
- In-context safety concept for inverter applications
- Hardware fault collection unit
- Safety documentation and SafeAssure community support
- Security
- Designed to support ISO/SAE 21434
- NXP hardware security engine (HSE_B) accelerates symmetric and asymmetric cryptos and hash
- Up to AES-256, RSA-4096, ECC-521, and SHA2/3-512
- Secure boot and key storage
- Side channel protection
- ISO 21434 intended
- HSE production-intent firmware
- Software
- Real-time drivers (RTD) for AUTOSAR and non-AUTOSAR OS, ASIL-D compliant
- Production-intent ASIL-D software resolver and checker
- SAR ADC firmware for DSP
- Security firmware
- Temperature and packaging
- -40°C to +125°C (TJ=+150°C)
- 289 MAPBGA (14 mm x 14 mm x 1.37 mm with 0.8 mm pitch)
- 176 LQFP-EP (24 mm x 24 mm x 1.5 mm with 0.5 mm pitch)
- BMS
- EV traction inverters
- Hybrid electric vehicles (HEVs)
S32K39/37 MCUs
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | S32K376NHT1MJBST | IC MCU 32BIT 6MB FLASH 289LFBGA | 740 - Immediate | $39.72 | View Details |
|  | S32K396EHT1MJBST | S32K396 Arm Cortex-M7 | 682 - Immediate | $42.21 | View Details |
|  | S32K396EHT1MKUST | S32K396 Arm Cortex-M7 | 136 - Immediate | $42.40 | View Details |
 | S32K396-BGA-DC1 | S32K396-BGA-DC1 | 0 - Immediate | $1,125.50 | View Details |
