Document Name: VESP211_R002_1116
Revision: March 2016
This product designed and manufactured in Ottawa, Illinois USA using domestic and imported parts by
International Headquarters
B+B Smartworx
707 Dayton Road
Ottawa, IL 61350 USA
Phone (815) 433-5100 -- General Fax (815) 433-5105
Website: www.advantech-bb.com
European Headquarters
B+B Smartworx
Westlink Commercial Park
Oranmore, Co. Galway, Ireland
Phone +353 91-792444 -- Fax +353 91-792445
©2016 B+B Smartworx No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including
photography, recording, or any information storage and retrieval system without written consent. Information in this manual is subject to change without notice,
and does not represent a commitment on the part B+B Smartworx .
B+B Smartworx shall not be liable for incidental or consequential damages resulting from the furnishing, performance, or use of this manual.
All brand names used in this manual are the registered trademarks of their respective owners. The use of trademarks or other designations in this publication is
for reference purposes only and does not constitute an endorsement by the trademark holder.
www.advanted'rbb.com
Page 3 of 69 www.advantech-bb.com
Table of Contents
Introduction ........................................................................................................... 7
About VESP211 Serial Servers ............................................................................. 8
VESP211 Serial Server Model Numbering .............................................................. 9
VESP211 Features ............................................................................................. 9
Vlinx Manager Configuration Software .................................................................. 9
VESP211 Hardware ............................................................................................... 11
Package Checklist ............................................................................................. 11
VESP211 Serial Server Enclosures and Mounting .................................................. 11
LED Indicators ................................................................................................. 12
Ready LED ........................................................................................... 12
Ethernet LED ........................................................................................ 12
Serial LED ............................................................................................ 12
Reset Switch .................................................................................................... 13
Using the Reset Switch to Initiate a Hardware Reset ................................. 13
Using the Reset Switch to Enter Console Mode ......................................... 13
Using the Reset Switch to exit Console Mode ............................................ 14
Using the Reset Switch to Reload Factory Default Settings ......................... 14
Ethernet Connector ........................................................................................... 14
Serial Port Connectors ....................................................................................... 14
Power Connector .............................................................................................. 15
Mounting Hardware........................................................................................... 16
Initial Setup and Connections ............................................................................... 17
Connecting the Power Supply ............................................................................. 17
Connecting VESP211 Serial Servers to Serial Devices ............................................ 17
RS-232 ................................................................................................ 17
RS-422 ................................................................................................ 17
RS-485 ................................................................................................ 18
Connecting VESP211 Serial Servers to a Network ................................................. 18
Ethernet Connection (10BaseT/100BaseTX) ............................................. 18
VESP211 Serial Server Configuration Connections................................................. 19
Configuring via the Network using Vlinx Manager ...................................... 19
Configuring via the network using a Browser ............................................ 19
Configuring via the Serial Port using Vlinx Manager (Console Mode) ............ 20
VESP211 Serial Server Operational Connections ................................................... 20
Page 4 of 69 www.advantech-bb.com
Installing and Starting Vlinx Manager .................................................................. 22
Discovering Serial Servers ................................................................................. 22
Configuring the Serial Server ............................................................................... 25
Overview of the Vlinx Manager ........................................................................... 25
Icons ................................................................................................... 26
Serial Server Information Table .............................................................. 26
Configuration Pane ................................................................................ 27
Logging In ....................................................................................................... 27
Navigating the Configuration Pages ..................................................................... 28
Setting up the Serial Server Name and Password ................................................. 28
Changing the serial server’s name: ......................................................... 29
Changing the password: ........................................................................ 29
Setting up IP Addressing ................................................................................... 29
Setting up Dynamic IP Addressing .......................................................... 30
Setting up Static IP Addressing .............................................................. 30
Setting up Serial Ports ...................................................................................... 30
Setting up Port Network Parameters ................................................................... 31
TCP Configuration ................................................................................. 32
UDP Configuration ................................................................................ 33
Setting up Virtual COM (VCOM) Operation ............................................... 35
Setting up Paired Mode Operation ........................................................... 36
Setting up Advanced Network Settings ................................................................ 38
Configuring when connections will be forced closed ................................... 39
Configuring when data packets are sent .................................................. 40
Saving/Restoring the Configuration Settings ........................................................ 43
Adding Virtual COM Ports ................................................................................... 43
Removing Virtual COM Ports ............................................................................. 45
Upgrading the Serial Server Firmware .................................................................. 46
Downloading Firmware Files ............................................................................... 46
To download the latest firmware files from an FTP site on the Internet ........ 47
To download the latest firmware files from a file ....................................... 47
Uploading the Firmware to the Serial Server ........................................................ 47
Diagnostics ........................................................................................................... 48
Testing a Serial Server Connection ..................................................................... 49
Testing a Virtual COM Port ................................................................................. 50
Page 5 of 69 www.advantech-bb.com
Description of Serial Server Properties ................................................................. 51
Appendix .............................................................................................................. 61
Appendix A: Default Server Settings ................................................................... 61
Appendix B: Product Specifications ..................................................................... 62
General Specifications ........................................................................... 62
Controls, Indicators and Connector Specifications ..................................... 63
Serial Interface Specifications ................................................................ 63
Network Specifications .......................................................................... 64
TCP/UDP Ports Table ............................................................................. 65
Appendix C: Dimensional Diagram ...................................................................... 67
Appendix D: Connector Pinouts .......................................................................... 68
DB-9M Connnector ................................................................................ 68
Terminal Block ..................................................................................... 68
Standard Ethernet Cable RJ-45 Pin-out .................................................... 69
www.advantechrbb,com
Section 1 - Introduction Vlinx VESR4x4 Serial Server
Page 7 of 69 www.advantech-bb.com
SECTION 1
Introduction
Thank you for purchasing a VESP211 Serial Server product! This product
has been manufactured to the highest standards of quality and performance to
ensure your complete satisfaction.
Figure 1. A VESP211 Serial Server
Section 1 - Introduction Vlinx VESR4x4 Serial Server
Page 8 of 69 www.advantech-bb.com
About VESP211 Serial Servers
VESP211 Serial Servers connect serial devices (RS-232, RS-422 or RS-485)
to Ethernet networks, allowing the serial device to become a node on the
network. The serial port can be accessed over a LAN/WAN using Direct IP
Mode, Virtual COM Port, or Paired Mode connections. VESP211 Serial Servers
support 10BaseT or 100BaseTX copper networks. The product is built for use
in industrial environments, and features a heavy duty metal enclosure that is
panel (standard) or DIN rail mountable (with optional adapter). The product
includes a DC power supply with a 2.1mm barrel connector.
Section 1 - Introduction Vlinx VESR4x4 Serial Server
Page 9 of 69 www.advantech-bb.com
VESP211 Serial Server Model Numbering
The VESP211 Serial Server family of products includes three models:
• VESP211-232, which uses a DB-9M connector and supports the RS-232
serial interface
• VESP211-485, which uses a pluggable, five-position terminal strip and
supports the RS-485 serial interface
• VESP211 which uses a DB-9M connector and supports the RS-232, RS-
422 and RS-485 serial interfaces
All models incorporate one serial connection and one Ethernet connection.
VESP211 Features
• Multi-interface serial port (VESP211)
• DB-9M serial port connector (VESP211 and VESP211-232)
• Five-position pluggable terminal strip (VESP211-485)
• Configuration can be done via network or direct serial connection
• Rugged panel mountable metal case
• Accepts 12 VDC power (power adapter included)
• 10/100 Mbps Ethernet with Auto Selection
• LAN and WAN Communications
• TCP Client or Server, or UDP operation - configurable
• Virtual COM port and Paired Mode capabilities
• Firmware Upload over the network for future revisions/upgrades
• Software Support - XP (32/64 bit), 2003 Server (32/64 bit), Vista (32/64
bit), 2008 Server (32/64 bit), Windows 7 (32/64 bit)
• Configuration of Ethernet and serial port settings using Vlinx Manager
software
Vlinx Manager Configuration Software
Vlinx Manager configuration software enables you to find connected serial
servers, configure them, upgrade serial server firmware, and save/load
configuration files. It features a graphical user interface (GUI) that is
convenient and easy to use. The software also makes it easy to add and
remove virtual COM ports on your computer.
www advantechrbbiom
Section 2 - VESP211 Hardware Vlinx VESR4x4 Serial Server
Page 11 of 69 www.advantech-bb.com
SECTION 2
VESP211 Hardware
VESP211 Serial Servers are enclosed in a rugged panel mountable enclosure
and feature:
• LED indicators
• Power, Ethernet and serial connectors
• A recessed Reset (mode) switch.
Package Checklist
VESP211 Serial Servers are shipped with the following items included:
• VESP211 Serial Server Module
• Quick Start Guide
• CD with User Manual, Quick Start Guide
• DC Power Supply
VESP211 Serial Server Enclosures and Mounting
All VESP211 models are built into similar enclosures. Modules are panel
mountable.
Figure 2. Front View of the VESP211 Serial Server
www.advanted'rbb.com
Section 2 - VESP211 Hardware Vlinx VESR4x4 Serial Server
Page 12 of 69 www.advantech-bb.com
LED Indicators
VESP211s have three LED indicators: a Ready LED, an Ethernet LED, and a
Serial LED.
Figure 3. Front Panel of the VESP211
Ready LED
The Ready LED (green) blinks once per second if the system is operating
correctly. If the LED is off, it indicates the system is not operating correctly (or
that it is in Console Mode).
Ethernet LED
The Ethernet LED illuminates if the Ethernet port is connected and blinks
when data is transmitted or received.
Serial LED
The serial port has an associated LED. The Serial Port LED blinks (green)
when data is being transmitted or received on the serial port. When the LED is
On, it indicates that the serial port is open.
www.advantechrhh,com
Section 2 - VESP211 Hardware Vlinx VESR4x4 Serial Server
Page 13 of 69 www.advantech-bb.com
Note: LEDs on the serial server are also used to indicate various Reset modes, as described in the
following section.
Reset Switch
A recessed momentary Reset switch is located on the side of the enclosure.
To activate the switch, insert a small plastic tool through the hole in the
enclosure and press lightly.
Figure 4. Ethernet Connector, Reset Switch (recessed) and Power Connector
The Reset switch can be used to:
• Initiate a Hardware Reset
• Enter Console Mode
• Reload factory defaults
Using the Reset Switch to Initiate a Hardware Reset
Hold the Reset switch in for 0 to 2 seconds. The Ready LED stops blinking
while the switch is being held in. The Serial LED illuminates while the switch is
being held in. Release the switch in less than two seconds or the serial server
will enter Console Mode.
Using the Reset Switch to Enter Console Mode
Hold the Reset switch for between two and ten seconds. The Ready LED stops
blinking while the switch is being held in. The Serial LED illuminates for the
first two seconds; then Serial LED goes out and the Ready LED illuminates.
Release the switch in less than 10 seconds or the serial server will reset to
factory default settings.
www.advanted'rbb.com
Section 2 - VESP211 Hardware Vlinx VESR4x4 Serial Server
Page 14 of 69 www.advantech-bb.com
Using the Reset Switch to exit Console Mode
Press and hold the Reset switch for two seconds, or remove power from the
serial server, wait a few seconds, and turn the power on again. The LEDs go
back to their normal states when the device resumes normal operation.
Using the Reset Switch to Reload Factory Default Settings
Hold the Reset switch for more than ten seconds. The Serial LED illuminates
for the first two seconds; then the Ready LED illuminates. After 10 seconds,
both the Serial and Ready LEDs illuminate. Release the switch after more than
10 seconds. The serial server will reset to factory default settings.
Ethernet Connector
The Ethernet connection uses an RJ45 receptacle. The serial server is
connected to a standard Ethernet network drop using a straight-through RJ45
(male) Ethernet cable.
Note: Refer to Appendix D for connection pin-outs.
Serial Port Connectors
VESP211 Serial Servers feature two serial port connector configurations,
depending on the model:
• VESP211 and VESP211-232 use DB-9M connectors for RS-232, RS-422
and RS-485 connections.
Figure 5. DB-9M Serial Port Connector
EDCBA www.advantechrbb,com
Section 2 - VESP211 Hardware Vlinx VESR4x4 Serial Server
Page 15 of 69 www.advantech-bb.com
• VESP211-485 serial servers use five-position removable terminal blocks
for RS-422 and RS-485 connections.
Figure 6. Five-Position Pluggable Terminal Blocks
Note: Refer to Appendix D for connection pin-outs.
Power Connector
VESP211 serial servers use a barrel jack connector for power. The connector
accepts a 2.1 millimeter plug and requires 12 VDC at 2.5 W maximum.
Figure 7. Ethernet Connector, Reset Switch (recessed) and Power Connector
www.advanted'rbb.com
Section 2 - VESP211 Hardware Vlinx VESR4x4 Serial Server
Page 16 of 69 www.advantech-bb.com
Figure 8.
Mounting Hardware
VESP211 Serial Server modules can be panel mounted using the built-in
mounting brackets.
Figure 9. VESP211 Enclosure with Panel Mount Bracket
An optional DIN rail mount adapter is available from B+B Smartworx.
www advantechrbbiom
Section 3 - Initial Setup and Connections Vlinx VESR4x4 Serial Server
Page 17 of 69 www.advantech-bb.com
SECTION 3
Initial Setup and Connections
This section describes how to setup and connect VESP211 Serial Servers.
Note: In this section devices to be connected to the serial server’s serial connection are simply referred to
as the “serial device”.
Connecting the Power Supply
Connect a DC power supply by plugging a 12 VDC power source into the
barrel jack on the top of the serial server. The center connection must be
positive (+). (Polarity of the connection is indicated on the label on the front of
the serial server.) The power supply must be capable of supplying 2.5 watts
maximum.
Connecting VESP211 Serial Servers to Serial Devices
VESP211 Serial Servers can be connected to serial devices using RS-232, RS-
422, RS-485 2-wire and RS-485 4-wire.
RS-232
The RS-232 interface supports seven RS-232 signal lines (TD, RD, DTR,
DSR, RTS, CTS, DCD) plus Signal Ground.
Signals are single ended and referenced to Ground. Default communications
parameters are 9600, 8, N, 1 and no flow control implemented.
Note: The VESP211 is configured as a DTE. If it is connected to a serial device configured as a DTE, use
a null modem (cross-over) cable. If the serial device is a DCE, use a straight-through cable.
RS-422
The RS-422 interface supports two signal pairs: TDA (-), TDB (+), RDA (-),
RDB (+) and GND. The data lines are differential pairs (A & B) in which the B
line is positive relative to the A line in the idle (mark) state. Ground provides a
common mode reference.
Section 3 - Initial Setup and Connections Vlinx VESR4x4 Serial Server
Page 18 of 69 www.advantech-bb.com
RS-485
The RS-485 interface supports 2-wire or 4-wire operation.
When configured for 4-wire operation the connection supports two signal
pairs: TDA (-), TDB (+), RDA (-), RDB (+) and GND. This makes full-duplex
operation possible. The data lines are differential pairs (A & B) in which the B
line is positive relative to the A line in the idle (mark) state. Ground provides a
common mode reference.
When configured for 2-wire operation the connection supports one signal
pair: Data A (-) and Data B (+) signal channels using half-duplex operation.
The data lines are differential with the Data B line positive relative to Data A in
the idle (mark) state. Ground provides a common mode reference.
Note: Refer to Appendix D for connector pinout information.
Network
Figure 10. VESP211 Connections
Connecting VESP211 Serial Servers to a Network
Ethernet Connection (10BaseT/100BaseTX)
The Ethernet connection uses a standard RJ45 connector. A standard
network cable is connected from the serial server to a network drop. PCs
configuring and/or communicating with the serial server are also connected to
the network.
www‘advanted'rbeom
Section 3 - Initial Setup and Connections Vlinx VESR4x4 Serial Server
Page 19 of 69 www.advantech-bb.com
VESP211 Serial Server Configuration Connections
VESP211 Serial Servers can be configured using several methods:
• Via the network using Vlinx Manager software
• Via the network using a web browser
• Via the serial port using Vlinx Manager software (Console Mode)
Configuring via the Network using Vlinx Manager
VESP211 Serial Servers can be configured over the network using Vlinx
Manager software running on a networked PC. Vlinx Manager includes a
discovery function that makes it possible to detect the serial server on the
network whether you know its IP address or not. Once the serial server has
been detected, the Manager can be used to configure its settings.
Note: For more information on how to use Vlinx Manager to configure your serial server, refer to Section 4:
Configuring the Serial Server
Network
Figure 11. Network Setup
Configuring via the network using a Browser
VESP211 Serial Servers can also be configured over the network using a
standard internet browser such as Internet Explorer or Firefox running on a
networked PC. To do so you must know the IP address of the serial server.
Your serial server comes from the factory pre-configured to receive an IP
address from a DHCP Server. If DHCP assignment is not available it will
default to 169.254.102.39
www‘advanted'rbeom
Section 3 - Initial Setup and Connections Vlinx VESR4x4 Serial Server
Page 20 of 69 www.advantech-bb.com
Note: For more information on how to use Vlinx Manager to configure your serial server, refer to Section 4:
Configuring the Serial Server
Configuring via the Serial Port using Vlinx Manager (Console Mode)
Your serial server can be configured via the serial port using Vlinx Manager. To
use this feature the serial port must be connected to the serial port of a PC
(using a null modem cable).
Figure 12. Console Mode Setup
To configure the serial server it must be put into Console Mode, using the
Reset switch.
Note: Refer to Section 2 for information on how to use the Reset switch to enter Console Mode.
VESP211 Serial Server Operational Connections
VESP211 Serial Servers can operate in Direct IP, Virtual COM Port and Paired
Modes.
In Direct IP Mode applications using TCP/IP or UDP/IP socket programs can
communicate with the COM ports on the serial server. In this type of
application the serial server is configured as a TCP or UDP server. The socket
program running on the PC establishes a communication connection with the
serial server. The data is sent directly to and from the serial port on the
server.
Section 3 - Initial Setup and Connections Vlinx VESR4x4 Serial Server
Page 21 of 69 www.advantech-bb.com
Network
Figure 13. Direct IP and Virtual COM Port Connection
In Virtual COM Port Mode a PC can communicate across the network to the
serial server as if the serial ports on the serial server are the PC’s serial ports.
When a virtual COM port is configured on the PC (using Vlinx Manager) a new
COM port appears in the Device Manager. Windows programs using standard
Windows API calls are able to interface to virtual COM ports. When a program
on the PC opens the new COM port, it communicates directly with the remote
serial device connected to the serial server.
In Paired Mode, two serial servers (connected to serial devices via their serial
ports) are connected to the network. The serial devices communicate directly,
transferring data between devices as a point-to-point serial connection. Paired
Mode is set up as shown in the following diagram and configured using Vlinx
Manager software or web interface.
Figure 14. Paired Mode Setup
H vhnx Manaeer Ethernet Serial Server — m: ’Covllecim Hmhmmbmnmhfim" r: M r Sun-IP09! *WWo-I r mmuawwm. (: lduflhwklP-ddmsdhdcvim. Em www‘advanted'rbeom
Section 3 - Initial Setup and Connections Vlinx VESR4x4 Serial Server
Page 22 of 69 www.advantech-bb.com
Installing and Starting Vlinx Manager
Vlinx Manager is a Windows-based application used to configure serial servers.
Install it on your PC from the included CD. Installation should launch
automatically when the CD is placed in the CD-ROM drive. If it does not
automatically launch, click Start on the Windows Desktop and, at the Run
command, type the drive letter and Vlinx Manager.exe. Follow the prompts to
install the software.
Once the program is installed, go to the Start > Programs menu and run the
program.
The Vlinx Manager Discovery window appears.
Figure 15. Discovery Window
Discovering Serial Servers
If you are configuring the serial server via the network, select Network; if you
are configuring it via the serial port, select Serial Port.
If you already know the IP address of the serial server, click The device is at
this IP address; if not, leave I don’t know the IP address of the device
selected.
Click Connect. The Progress bar provides information to indicate whether
serial servers are detected.
The text in the Progress box appears in various colors, depending on the
message type.
am A step m the mswveryprmess. Daka‘uE A dEWEE was notlmmd. Dalk Green A dEWEE was 70mm Davk Red An enmommed www ddvd"!k‘( llrbb mm
Section 3 - Initial Setup and Connections Vlinx VESR4x4 Serial Server
Page 23 of 69 www.advantech-bb.com
Color Description
Black
A step in the discovery process.
Dark Blue
A device was not found.
Dark Green
A device was found.
Dark Red
An error occurred.
If one or more devices are found, the discovery window closes automatically
and the Configuration window appears.
; M Icon: Serial Suva! Information Table 168.1404) Emmet Senal Serve! Came-ts Lay'n Help Luna '— End :1» Nissnvldlv mu- WWW Mada“ thud-1km law-n In: Law mm Con urat deet \‘Esml 3.“... mm“; o H Human Yam 1 me Add!» mom-1500mm m Sun" mg.“ M Ma www.advanted'rbb.com
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 25 of 69 www.advantech-bb.com
SECTION 4
Configuring the Serial Server
Overview of the Vlinx Manager
The Vlinx Manager configuration window includes three areas:
• Icons
• Serial Server Information Table
• Configuration pane
Figure 16. Vlinx Manager Configuration Window
Note: The screen shots shown in this manual refer to the VESR901. Your screen will display the model
name/number and serial number of your device. All menus, functions and options shown on the
screen shots in this manual apply to your device.
a D I) W D x up) Open Cfg SaveCfg SavuSearch Firmware Upgrade AMVCOM Remove VCOM Diagnostk www‘advanted'rbbxom
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 26 of 69 www.advantech-bb.com
Icons
Figure 17. Configuration Window Icons
• Open Cfg - choose a previously saved configuration file.
• Save Cfg - save the current configuration to a file.
• Server Search - initiate another search for servers.
• Firmware Upgrade - open the Firmware Upgrade
• Add VCOM - open the Add Virtual COM Port window
• Remove VCOM - open the Remove Virtual COM Port window
• Diagnostic - open the Diagnostics window
Serial Server Information Table
The serial server information table contains information about all serial servers
that have been discovered on the network or serial ports.
Figure 18. Serial Server Information Table
The table includes columns, and displays information, for:
• MAC Address - the MAC Address of the serial server
• Server Name - the name reported by the serial server
• Connection - the IP address of the serial server
• Port 1, Port 2, Port 3 and Port 4
• First communications protocol used by the serial server (TCP client,
TCP server or UDP)
• TCP port number or UDP port number
• The virtual COM port assignment on the local PC (if assigned)
• Whether the serial server's serial port is being used by anyone on the
network
The status of whether the serial server is in use is updated periodically.
www‘advanteCh-bb.com
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 27 of 69 www.advantech-bb.com
When a serial server's IP address is configured for a network that is not within
the local network's range, the serial server's information is displayed in a
different color (orange).
Configuration Pane
The configuration pane is essentially a web browser.
Figure 19. Configuration Pane
It includes the following:
• Masthead with the name and IP address of the currently selected serial
server
• Contents sidebar (on the left side) containing hyperlinks to the following
configuration pages:
• General
• Network
• Port x Settings (x = port number; each serial port connection is
represented by a hyperlink)
• Port x Serial (x = port number; each serial port connection is
represented by a hyperlink)
• Save
• Login/Logout
• Configuration settings area in the middle of the pane where you can
select the settings desired for operation of the serial server
• Help sidebar (on the right side) containing helpful descriptions,
explanation and suggestions for configuring the serial server
Logging In
You can log in to any serial server listed in the Server Information Table.
To log in:
Ethane-J! Sen-l Samar - “92:16am“ ) . .~ can...“ um mun mm W 2-11 mvbum sva | an Wle MACmo- wmwmx um. mm‘rfilmpla Mr bumuuwvawbm ”gamma. My.“ www.8dvantecfrbbrom
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 28 of 69 www.advantech-bb.com
1. Double-click the row associated with the desired serial server. The Login
page appears.
2. Type the password into the Password box. The password is blank by
default.
Figure 20. Login Page
3. Click Login.
The General Configuration page appears.
Navigating the Configuration Pages
There are two ways to move from page to page in the Vlinx Manager software:
by clicking a specific link, or by clicking Next or Back to move through the
pages sequentially.
Note: Always remember to click Save before leaving a page to ensure your settings are saved.
Setting up the Serial Server Name and Password
On the General Configuration page you can do the following:
• Change the name of the serial server
• Initiate a login password change
m o I ; a a x ~— hralhfilhbmh-«WWKMMHMW nap (ollmu m mm mm mum m m m.w-u._.me—~ .. ......l 1., mg mmw pmuud Tmmm'wswwdnu'mmcmfimk fllfll www.8dvantecfrbbrom
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 29 of 69 www.advantech-bb.com
Figure 21. General Configuration Page
Changing the serial server’s name:
1. Type the new name into the Serial Server Name text box.
2. Click Save.
Changing the password:
1. Select the I want to change the password check box.
Two text boxes appear.
Figure 22. Changing the Password
2. Type the new password into both boxes
3. Click Save.
Setting up IP Addressing
On the Network Configuration page you can configure the serial server to use
dynamic (DHCP) or static IP addressing on the network.
.- n ; 1 eh x -« Ono-wwumunm—uwu mm»... nmmx enal w mm x...“ m, an : w. ..... m and”... 5-1 n my 3 . :vax‘“ hm- m.— ‘ r:$‘-wmn m MM 7 “hath-nu... ”W...“ ”m“ ‘ ‘ ram! Egg mam» Network r lmDflCthhwa-k I’m 001: mm; W mam, hm— gin—“l g www.8dvantech—bb.com
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 30 of 69 www.advantech-bb.com
Figure 23. Network Configuration Page
Setting up Dynamic IP Addressing
1. Select the I want to use DHCP to setup the network check box.
Setting up Static IP Addressing
1. Ensure the I want to use DHCP to setup the network box is un-checked.
Figure 24. IP Address Settings
2. Type the IP Address, Subnet Mask and Default Gateway addresses in the
appropriate boxes.
Setting up Serial Ports
On the Serial Port Configuration page you can configure the communications
parameters of the current serial port. Parameters include port mode, baud
rate, data bits, parity, stop bits and type of flow control.
www.8dvantech—bb.com
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 31 of 69 www.advantech-bb.com

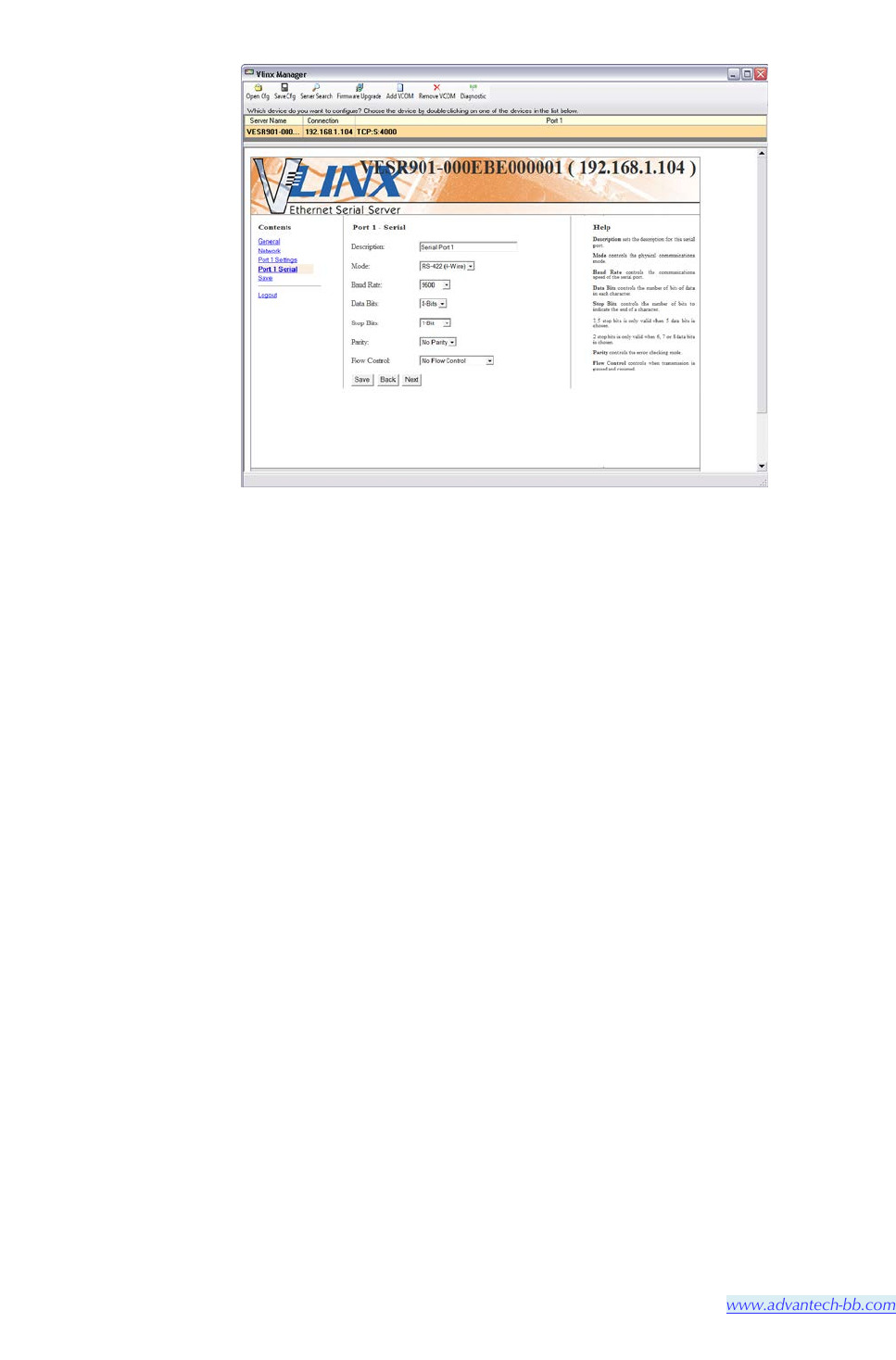

Figure 25. Serial Port Configuration Page
1. Mode - select the type of serial connection (RS-232, RS-422, RS-485 2-
wire or RS-485 4-wire) required to connect the serial device to the serial
server.
2. Baud Rate - select the Baud Rate (between 75 baud and 230,400 baud)
required to communicate with the serial device connected to the serial
server.
3. Data Bits - select the number of Data Bits (5, 6, 7 or 8) required to
communicate with the serial device connected to the serial server.
4. Stop Bits - select the number of Stop Bits (1, 1.5, or 2) required to
communicate with the serial device connected to the serial server.
5. Parity - select the Parity setting (None, Even, Odd, Mark or Space)
required to communicate with the serial device connected to the serial
server.
6. Flow Control - select the Flow Control setting (None, RTS/CTS or
XON/XOFF) required to communicate with the serial device connected to
the serial server.
Setting up Port Network Parameters
On the Port Network Parameters Configuration page you can configure the
port to use UDP, TCP. VCOM or Paired protocols in several different modes.
Elhcmu ml 5mg cm... m 31.11- mm m w m..w.u ‘...-......x..~.x rm rm! Px'wMM’ M»... ' “ammo": - h‘em‘m l—nu‘uflmf—‘Immx nun—mar r mtg-Mme. mag m» m.m«ummW~u-w www.8dvantechbb.com
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 32 of 69 www.advantech-bb.com
TCP Configuration
TCP (Transmission Control Protocol) provides reliable connection-oriented
network communication with error checking. In TCP mode the serial server can
be configured as a client or a server.
When you configure the serial server as a TCP client it initiates connections
with a server on the network. You must set up the IP address and port number
of the server that you want the client (serial server) to communicate with. You
also select whether you want the serial server to connect at power up or only
when it receives data from the device connected to its serial port.
When the serial server is configured as a TCP server it waits for connections
to be initiated by another network device. You must set up the TCP port
number that it will listen to for connections and set the maximum (up to eight)
number of simultaneous connections it will accept. You can filter the
connections it will accept based on specific IP addresses or ranges of IP
addresses that you specify.
Figure 26. TCP Configuration
Setting the serial server to operate as a TCP Client
1. Select TCP protocol.
2. Select to initiate connections (client)
3. Type the IP address into the I want to connect to IP address: box
4. Type the TCP port number of the server into the on TCP port number:
box.
Avnmmmmnmwm dizidx-mn‘unonw 1—_J.m-w. . r newnwmm r Mm-qdmmnm rdM-flwanm” m W
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 33 of 69 www.advantech-bb.com
5. Select:
• at power up - if you want the serial server to always be connected
• when the serial port receives data - if you only want to establish a
connection when there is data to be sent.
Setting the serial server to operate as a TCP Server
1. Select TCP protocol.
2. Select to wait for connections (server).
The configuration options change. The server IP address box disappears
and the number of connections box appears.
3. Type the port number in the I want to wait for connection on TCP port
number: box.
4. Select the maximum number of connections desired in the and limit the
number of connections to: drop down box.
Figure 27. TCP Server Settings
UDP Configuration
UDP (User Datagram Protocol) enables applications using UDP socket
programs to communicate with the serial ports on the serial server. UDP
protocol provides connectionless communications, which allows data to be
broadcast to and received from multiple nodes on a network.
In UDP mode, if you want to control what network node receives data, you
must specify the IP address and UDP port the data will be sent to. You can
choose to send to:
• Nobody
• All nodes at a specific UDP port number. (This is called broadcast.)
• Specific IP addresses and UDP port numbers. (This is called unicast.)
• A range of IP addresses and UDP port numbers. (This is called unicast
range.)
Emma “'fi Hal sewer cu...- m .m— mm- in nu rm inn-n r‘nmummmn r lul- ww \umuux' mm "mu.“ , mun-wmrwndkw ~ mewwfl—g - n;w‘Vm-«(‘d— rummagin- . M r .m....emy..«mwm * mdummflmm » mumuw-finwm-m-mnm Egg .__.. m.mg—mwwc_...a.._‘ www.8dvantechbb.com
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 34 of 69 www.advantech-bb.com
You can also configure the serial server to receive from nodes on the network
using the same list of configuration options.
Figure 28. UDP Configuration
Setting the serial server to use UDP
1. Select UDP protocol.
Options are provided for sending and receiving data to and from:
• Nobody
• Everyone on a specific UDP Port
• Only specific IP addresses
• Only a range of IP addresses
Additional configuration fields appear depending on the options chosen.
2. Select the required Send options:
a. nobody - sends to nobody
b. everyone on a specific UDP port (send broadcast) - sends to all UDP
ports on the network (specified later)
c. only specific IP addresses (send unicast) - sends to specific network
IP addresses (specified later)
d. only a range of IP addresses (send unicast range) - sends to all IP
addresses within a specified range (specified later)
3. Configure the Send IP addresses and port numbers:
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 35 of 69 www.advantech-bb.com
• If you selected: everyone on a specific UDP port (send broadcast),
type the UDP port number into the This is the UDP port I want to
send data to: box
• If you selected: only specific IP addresses (send unicast), type the
IP addresses and port numbers into the These are the IP addresses I
want to send data to: text boxes
• If you selected: only a range of IP addresses (send unicast range),
type the ranges of IP addresses and port numbers into the These are
the IP addresses I want to send data to: text boxes
4. Select the required Receive options:
a. nobody - receives from nobody
b. everyone on a specific UDP port (receive broadcast) - receives from
all UDP ports on the network (specified later)
c. only specific IP addresses (receive unicast) - receives from specific
network IP addresses (specified later)
d. only a range of IP addresses (receive unicast range) - receives from
all IP addresses within a specified range (specified later)
5. Configure the Receive IP addresses and port numbers:
• If you selected: everyone on a specific UDP port (receive
broadcast), type the UDP port number into the This is the UDP port I
want to receive data from: box
• If you selected: only specific IP addresses (receive unicast), type
the IP addresses and port numbers into the These are the IP
addresses I want to receive data from: text boxes
• If you selected: only a range of IP addresses (receive unicast
range), type the ranges of IP addresses and port numbers into the
These are the IP addresses I want to receive data from: text boxes
6. Click Save
Setting up Virtual COM (VCOM) Operation
When the Network Protocol is set to VCOM (Virtual COM Port) the serial
server communicates over the network with a PC, acting as a remote COM
port for the computer.
www‘advantech-bbLom
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 36 of 69 www.advantech-bb.com
Figure 29. VCOM Configuration
Note: Both the serial server and the computer must be configured for VCOM operation. To set up a virtual
COM port on the computer, refer to the section on Adding Virtual COM Ports.
1. To enable VCOM operation, select VCOM protocol.
2. Click Save
Setting up Paired Mode Operation
Paired Mode enables two serial servers to operate across the network like a
"wire replacement" between two serial devices. (Paired Mode is also called
serial tunneling.) Serial devices connected to serial servers on each end of the
link can communicate as it they were connected by a serial cable.
For Paired Mode to work one serial server must be configured as a TCP server
and the other as a TCP client.
The serial server configured as the TCP client initiates the connection. You
must set up the IP address and port number of the server that you want the
client (serial server) to communicate with. You also select whether you want
the serial server to connect at power up or only when it receives data from the
device connected to its serial port.
The serial server configured as a TCP server waits for connections to be
initiated by another network device. You must set up the TCP port number on
which it will listen for connections and set the maximum (up to four) number
of simultaneous connections it will accept. You can filter the connections it will
accept based on specific IP addresses or ranges of IP addresses that you
specify.
W168?! .104 ) Ethnnekimal Sm: cwun nru m...” r... W >mrmwmmn a“ uu- - mun 9-. m ’ mums—«m; xuvo—u-flm‘nf‘iflml “:me @315 um- vamformlvdbm(m) “A,” V (CB) Immwafumumppmmm maumcfmm 1mm v a dmmmm r “Mlmmmcsmm r ndlbw-Qdicmgzdmiflmmm www‘advantedrbbLom
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 37 of 69 www.advantech-bb.com
Figure 30. Paired Mode Configuration
Setting the serial server to operate in Paired Mode as a client
1. Select Paired protocol.
2. Select to initiate connections (client)
3. Type the IP address and TCP port numbers of the server in the appropriate
text boxes.
4. Select:
• at power up - if you want the serial server to always be connected
• when the serial port receives data - if you only want to establish a
connection when there is data to be sent.
Setting the serial server to operate in Paired Mode as a server
1. Select Paired protocol.
2. Select to wait for connections (server).
Figure 31. Paired Mode Settings
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 38 of 69 www.advantech-bb.com
3. Type the TCP port number to be used in the I want to wait for connections
on TCP port number box.
4. Select the number of connections in the and limit the number of
connections to drop down box.
5. Select:
• and allow everyone to connect - if you want any server to connect
• and allow a specific IP address to connect - if you want to specify
up to four IP addresses to be able to connect
• and allow a specific range of IP addresses to connect - if you want
to specify a range of IP addresses that can connect
6. If you selected
• and allow a specific IP address to connect, in the area of the
window that appears, select one or more IP address boxes and type in
the desired IP address
Figure 32. IP Addresses
• and allow a specific range of IP addresses to connect, in the area of
the window that appears, select an IP address box and type in the IP
addresses that specify the desired range
Figure 33. IP Address Ranges
Setting up Advanced Network Settings
On the Advanced Network Settings window you can configure how and when
connections are made and data packets are sent.
Culmnn E EEEKE [Khan 1 am we! pan: 4mm“ > \nuumummmddbduudm > \Inhrmflmdfllmaunmamnwmk filflfi cam.“ m m nu:— mm a. m- mu Ann-m r lu—ww-dumrmmvu‘ktmuumd \mmwnH-I r lm-mnwmn-umuu mar-mt“ r—__ sum-M1 Vlmhfixlmmmnummwka‘ Maud-11m Vim , x.....mu...a..am.m“.mn mag www‘advanted'rbbLom
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 39 of 69 www.advantech-bb.com
Figure 34. Advanced Network Settings Window with nothing selected
Configuring when connections will be forced closed
1. Select the I want to control when connections would be forced closed
checkbox.
The Network Watchdog and Serial Watchdog configuration boxes appear.
Figure 35. Advanced Configuration - Forcing Connections Closed
To close a connection if no data is received for a period of time
1. Select the I want to close a connection when data is not received on that
connection for a period of time checkbox
2. Type the desired time period (in milliseconds) into the text box.
To close a connection if no data is received by a serial port for a period of
time
1. Select the I want to close all connections when data is not received by
the serial port for a period of time checkbox.
Character Count ed Transmit mm... m: W :2; kxu Emunm 5mm Sewn , m 4mm rx‘ =‘mmmxbwls..d Flume-ad‘tnhumsnnwtmwl r I—mfih»dmmum»mwm~u uni—m. I, W I’mud‘ler-i r Immdmhwmamudixam. mm”; lingual, Wu." rx...w.n...awm...gm-..w M If m m... ’Iu-mm—(mmnmmnmm In...“ 1— "mafia.” my: * luadm—lfihnfia—numufly mum-st If Aimmnm may": 'lu-muMmI—hmwm ma- ml ml .4 Inter www advanted'rbb.com
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 40 of 69 www.advantech-bb.com
2. Type the desired time period (in milliseconds) into the text box.
Configuring when data packets are sent
1. Select the I want to control when data packets are sent over the network
checkbox.
The Character Count, Forced Transmit, Intercharacter Timeout,
Delimiter 1, Delimiter 2 and Delimiter Removal configuration boxes
appear.
Figure 36. Advanced Configuration - Configuring when data packets are sent
0 amount of data han a snecilic amou send data immediatelv w nq data wh atelv when wwwadvantech—bbcom
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 41 of 69 www.advantech-bb.com
To wait until a specific amount of data is received on the serial port
before sending it across the network
1. Select: I want to wait for a specific amount of data to be received by the
serial port before sending it in the Character Count box
2. Type the desired number of characters into the text box.
To force the serial server to send data received on the serial port within
a specified length of time
1. Select: I want to wait no longer than a specific amount of time after data
is received before sending it in the Forced Transmit box
2. Type the desired time period (in milliseconds) into the text box.
To force the serial server to send data within a specified length of time
after receiving it
1. Select: I want to send data immediately when no more characters are
received for in the Intercharacter Timeout box.
2. Type the desired time period (in milliseconds) into the text box.
To force the serial server to start buffering data only when it receives a
specified ASCII character on its serial port. No data will be buffered until
this character is received.
1. Select: I want to begin buffering data when a specific character is
received by the serial port in the Delimiter 1 box.
2. Type the ASCII character into the text box.
Note: Delimiter 1 cannot be used alone. Either Delimiter 2 or one of the transmit timers must be used with
it.
To force the serial server to send data when it receives another specified
ASCII character on its serial port
1. Select: I want to send data immediately when another specific character
is received by the serial port in the Delimiter 2 box.
2. Type the ASCII character into the text box.
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 42 of 69 www.advantech-bb.com
To force the serial server to remove the delimiter characters from the
data when it sends it on its serial port
1. Select: I want to remove the delimiter characters from the data before
sending the data.
s." Drmw-kmhn‘n-ukwim‘ h. m w y._‘.d_...~...w_c._.‘.k M MommmeMkJfi-w (located at the top 0 www.8dvantechbb.com
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 43 of 69 www.advantech-bb.com
Saving/Restoring the Configuration Settings
When all configuration windows are complete the Save Configuration page
appears.
Figure 37. Save Configuration Page
To save the configuration to the serial server, and re-boot it so that the
configuration settings will take effect
1. Click Save.
To restore the configuration settings that existed before beginning
configuration
1. Click Restore Defaults.
Adding Virtual COM Ports
Clicking the Add VCOM icon (located at the top of the Vlinx Manager
Configuration window) opens the Add Virtual COM Port dialog box.
ng the virtual COM port is complete (in wwwadvantech—bbcom
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 44 of 69 www.advantech-bb.com
Figure 38. Add Virtual COM Port Dialog Box
Using the drop down boxes you can select the serial server you want to map
the virtual COM port to, the number of the serial port on the serial server and
the COM port on the local computer. The information box displays the server
name, its IP address, operating mode and TCP port.
1. On the Vlinx Manager window, click the Add VCOM icon.
The Add Virtual COM Port dialog box appears.
2. Select the serial server to which you want to map the virtual COM port.
3. Select the serial port number on the serial server.
4. Select the COM port number you want to use on the local computer.
5. Click the Add button.
When the process of adding the virtual COM port is complete (indicated by
the progress bar), the Serial port is successfully installed dialog box
appears.
6. Click OK
con (located at the top of th «Nun vssnmmumnm m 151va la 105m- "7mm .uml mil oving the virtual COM port is complete www.8dvantech—bb.com
Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 45 of 69 www.advantech-bb.com
Removing Virtual COM Ports
Clicking the Remove VCOM icon (located at the top of the Vlinx Manager
Configuration window) opens the Remove Virtual COM Port dialog box.
Figure 39. Remove Virtual COM Port Dialog Box
Using the drop down boxe you can select the virtual COM port on the local
computer. The information box displays the server name, its IP address,
operating mode and TCP port.
1. Click the Remove VCOM icon.
The Remove Virtual COM Port dialog box appears.
2. Select the COM port number you want to remove from the local computer.
3. Click the Remove button.
When the process of removing the virtual COM port is complete (indicated
by the progress bar), the Serial port is successfully deleted dialog box
appears.
4. Click OK
E mm mm a Immmlhefimedlikwidm Emu-minim v lvmfim-ummlflflwhfimmmfiadh 'W—;l mad-«Imam Rum-min“ m. m mu... «- pnn nun-cum: Ivan nay-u mmnmdmzmnul ax mmmmdwzsmwu uK anmMAulmnuA ax mmmmmwmm .m, 8m W www advantechrbb com
Section 4 - Upgrading the Serial Server Firmware Vlinx VESR4x4 Serial Server
Page 46 of 69 www.advantech-bb.com
SECTION 4
Upgrading the Serial Server Firmware
Occasionally, updated firmware may become available for your serial server.
The firmware can be upgraded using the Vlinx Manager software. The
following procedure describes the firmware updating process:
1. Click the Firmware Upgrade button to open the Firmware Upgrade
window.
Figure 40. Firmware Upgrade Dialog Box
The name of the currently selected serial server appears in the top drop
down list. Other serial servers (that have already been discovered) can be
selected from the drop down list, if desired.
The current firmware version of the selected serial server is shown in the
text below the serial server name.
Information about the selected firmware file is shown in the third text box.
Downloading Firmware Files
The Firmware File list (second box) displays all firmware files in the firmware
installation folder. Only firmware that is compatible with the selected serial
server is available in this list.
Section 4 - Upgrading the Serial Server Firmware Vlinx VESR4x4 Serial Server
Page 47 of 69 www.advantech-bb.com
To download the latest firmware files from an FTP site on the Internet
1. Click the Internet button at the bottom of the window.
The Vlinx Manager connects to an FTP server on the Internet.
2. Click the Check for Updates button.
Progress Bar and Progress Box display information about and progress of
the download.
To download the latest firmware files from a file
1. Click the Browse button to open an Open File dialog box.
2. Browse to the drive and folder containing the firmware file.
3. Select and download the file to the local firmware folder.
Uploading the Firmware to the Serial Server
1. In the Serial Server Selection drop down list, select the serial server to be
upgraded.
2. In the Firmware Description drop down list, select the firmware to upload
to the serial server.
3. Click the Upgrade button.
Progress Bar and Progress Box provides information on the progress of
the transfer.
4. In the Firmware File drop down list, select the firmware file to upload to
the serial server.
5. Click Upgrade.
The Progress box and Progress bar display information on the upgrading
process.
6. When the upgrade process is complete, click Close.
I'm—u \v'lbl‘ Pawn-mm 5 l—fl“ Elm‘dm wmum F I “I‘m-"4 IPWn-K IEZIEI In) an: . smH-x 25mm WSW “mm lid-mung Iszvsul m 51'7"“‘131 ram-Embr- SmN-nx VESRWI MBEW ‘ IPmm‘SZIRIIM SMH-“flmasfl nuns-"w 1mm 1 www.3dvantechrbb com
Section 7 - Diagnostics Vlinx VESR4x4 Serial Server
Page 48 of 69 www.advantech-bb.com
SECTION 7
Diagnostics
Clicking the Diagnostic icon opens the Diagnostics dialog box and enables you
to check the operation of connected serial servers and VCOM ports on the local
computer.
The Computer Information box displays information about the type of network
connections, the IP addresses, Subnet Masks and Default Gateways in use.
Figure 41. Diagnostics Dialog Box
Information ab "mun: m—m fi' afi-‘u Eli-UM“ WWW A t‘ fl—m— legli‘tlgo «mm-Em :I' msmm‘zwmmn L Em.w“".g%§fffi“‘"‘ Muuwsmmm. M 5.. .pmmmm “$333332? 1‘ 1 thmlm wunazmmm Rama": “ma-“run: w _ . Mlnlvlfll Ifll MwlnlfL-Ia mmmm MW...” Mnmhlnlillm WSn-llw-l,muflflxhnl Mme-unmm mun-.mn—m-hA—u m. IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII _|«-- EI_In- wwwadvantech—bb.com
Section 7 - Diagnostics Vlinx VESR4x4 Serial Server
Page 49 of 69 www.advantech-bb.com
Testing a Serial Server Connection
1. Click the Diagnostic icon.
The Diagnostics dialog box appears.
2. Select the option: a serial server
3. In the drop down box select the specific serial server you want to check.
4. Click the Start button
Information about the progress of the pinging process is displayed in the
Test Progress box.
Figure 42. Testing a Serial Server Connection
Information ab "mun: mil—K f' I‘“ EMA” Villfi S > "i"— lelzllllln S‘ni N-k 2521mm WHZ Duh-5m “all I m ~m EMA“ Lufmatumm .rmmwm m 5..“74533'sm MM I Mm 1mm I I‘D-'— W—. W
Section 7 - Diagnostics Vlinx VESR4x4 Serial Server
Page 50 of 69 www.advantech-bb.com
Testing a Virtual COM Port
1. Loopback the serial port (i.e. connect TD to RD)
2. Click the Diagnostics icon.
The Diagnostics dialog box appears.
3. Select the option: a virtual communications port
4. In the drop down box select the specific COM port you want to check.
5. Click the Start button
Information about the progress of the pinging process is displayed in the
Test Progress box.
Figure 43. Testing a VCOM Port
www advantechrbbiom
Section 8 - Description of Serial Server Properties Vlinx VESR4x4 Serial Server
Page 51 of 69 www.advantech-bb.com
SECTION 8
Description of Serial Server Properties
The following serial server properties are ordered alphabetically to assist you
in finding the information you need.
Baud Rate is the communication speed of the link between the serial server
and the device attached to its serial port. Both these devices must be
configured to operate at the same baud rate. Baud rate values range from 75
to 230,400 Baud. (Refer to Appendix B for specific baud rates that are
supported.)
Character Count controls the maximum number of characters to buffer
before sending the characters to the network. Larger values decrease the
number of network packets, but increase the amount of time to receive
characters. Smaller values increase the number of network packets, but
decrease the amount of time to receive characters. The range is 1 through
8192.
Configuration files contain all configuration settings for the serial server.
When the serial server settings have been configured you can save the
settings using Vlinx Manager. Existing configuration files can be Opened (from
Vlinx Manager), which loads them into the serial server. This allows the same
configuration to be applied to multiple serial servers, or to reload a previously
used configuration.
Data/Parity/Stop Bits. The number of Data bits, type of Parity and number
of Stop bits selected define the serial port parameters at which the serial
server will operate. These parameters must be configured to match the
parameters set on the serial device connected to the serial server's serial port.
• Data Bits controls the number of bits of data in each character. Options
include 5, 6, 7 or 8 data bits.
• Parity controls the error checking mode. Options are No Parity, Odd,
Even, Mark or Space.
• Stop Bits controls the number of bits to indicate the end of a character.
Options include 1, 1.5 and 2. (1.5 bits is only valid when 5 data bits is
selected, which is rare. The 2 stop bits setting is only valid when 6, 7 or 8
data bits is selected.)
The Default Gateway address sets the default route to remote networks,
enabling users to access the serial server from outside the local network.
Section 8 - Description of Serial Server Properties Vlinx VESR4x4 Serial Server
Page 52 of 69 www.advantech-bb.com
Delimiter 1, Delimiter 2 and Delimiter Removal. Delimiters and Delimiter
Removal enable you to control how characters received on a serial port are
sent across the network. Delimiters are ASCII characters specified by the user
when configuring the serial server. The serial server takes action when it
recognizes the specified character(s) on its serial port.
• Delimiter 1 is a start delimiter. The range of ASCII values is 1 through
255.
• Delimiter 2 is an end delimiter. The range of ASCII values is 1 through
255.
• Delimiter Removal controls removing of Delimiter 1 and Delimiter 2
from the received characters before the received characters are sent to
the network.
How Delimiters Work. When only Delimiter 2 (the end delimiter) is
enabled, characters received by the serial port are accumulated in a
buffer. When the end delimiter is received on the serial port, the buffered
characters, including the end delimiter, are sent to the network. All
characters received after the end delimiter are again buffered until
another end delimiter is received.
When both Delimiter 1 (start delimiter) and Delimiter 2 (end delimiter)
are enabled, characters received by the serial port will be discarded until
the start delimiter character is detected on the serial port. The serial
server then buffers the start delimiter character and all subsequent
characters received after it until the end delimiter is detected. When the
end delimiter is received, the buffered characters, including the start and
end delimiters, are sent to the network.
When Delimiter Removal is enabled it removes the delimiter character(s)
before sending the other characters across the network.
DHCP (Dynamic Host Configuration Protocol) is a protocol used on special
servers that supply IP addresses to network nodes on request.
When DHCP is enabled on the serial server, on power up it sends a DHCP
request to the DHCP server, which assigns a dynamic IP address, subnet
mask, and default gateway to the serial server.
When DHCP is disabled (static IP addressing), the IP Address, Subnet Mask
and Default Gateway fields must be set manually by entering the appropriate
addresses in these fields. If you do not know what addresses to use in these
fields, ask your network administrator.
169.254.102.39 1 69.254.102.39 www advantechrbbiom
Section 8 - Description of Serial Server Properties Vlinx VESR4x4 Serial Server
Page 53 of 69 www.advantech-bb.com
Note 1: This product is factory defaulted to the DHCP mode. It is intended that your network’s DHCP Server
provide the IP address assignment. If there is not a DHCP server on your network, the device will
default to IP address 169.254.102.39.
Note 2: A dynamic address assigned by the DHCP server may change if the server loses the Ethernet
connection or power is removed. If a device on the network that normally communicates with the
serial server is configured to communicate with a specific IP address of the serial server, and the IP
address has been changed, the device will not be able to communicate with the serial server.
The Firmware Version number (Vx.x.x) indicates the serial server's currently
loaded firmware release. From time to time new firmware is made available
and can be uploaded into the serial server using Vlinx Manager.
Flow Control determines the type of handshaking that is used to control
sending and receiving of messages. Options include No Flow Control,
Hardware Flow Control (RTS/CTS) and Software Flow Control (XON/XOFF).
The Flow Control setting must match the requirements of the serial device
connected.
Note: Select No Flow Control when setting the port as RS-422 or RS-485 4-wire.
Forced Transmit controls the maximum amount of time that characters can
be buffered before sending the characters to the network. Larger values
decrease the number of network packets, but increase the amount of time to
receive characters. Smaller values increase the number of network packets,
but decrease the amount of time to receive characters. The range is 1 through
65535.
The Hardware Version number of the serial server hardware is displayed on
the Login page of Vlinx Manager.
Inter-character Timeout controls the maximum duration between received
characters before sending the characters to the network. Larger values may
decrease the number of network packets, but increase the amount of time to
receive characters. Smaller values may increase the number of network
packets, but decrease the amount of time to receive characters. The range is 1
through 65535.
IP Address. Software or hardware attempting to access the serial server via
the network must know the IP Address of the server. In DHCP mode (factory
default), the serial server requests and receives a dynamic IP address from a
DHCP server when it first connects to the network. If there is not a DHCP
Server on your network, this device will automatically default to IP Address
169.254.102.39. If the serial server is unable to connect to your network
using this address, there are two methods to manually configure the IP
Address.
wwwadvantech—bbcom
Section 8 - Description of Serial Server Properties Vlinx VESR4x4 Serial Server
Page 54 of 69 www.advantech-bb.com
1. Method One: Change your PC Network to Match the Serial Server
a. Open the network connection on your PC
Figure 44. Network IP Properties
b. Click Internet Protocol (TCP/IP) and then click Properties. Change
the parameters to the following:
• IP Address = 169.254.102.1
• Subnet Mask = 255.255.255.0
• Default Gateway = 169.254.102.100
Figure 45. TCP/IP Properties
c. Use the Vlinx Manager software to search for, discover, and configure
the unit.
2. Method Two: Change the serial server’s network setting to match your PC
using Console Mode
a. Connect a null modem serial cable (crossover cable) from Port 1 on
the serial server to an available COM port on your PC.
b. Open Hyper Terminal or similar serial emulation software and connect
to the COM port used in the step above. Ensure the port is configured
to 115,200 baud, 8 data bits, and 1 stop bit.
1PM OFF N/A ON 2 PM OFF ON OFF www advantm hrhb mm
Section 8 - Description of Serial Server Properties Vlinx VESR4x4 Serial Server
Page 55 of 69 www.advantech-bb.com
c. Enter Console Mode. Press and hold the serial server’s reset switch for
2 to 10 seconds. The LED indicators will respond as follows:
Model Port 1 LED Port 2 LED Ready LED
1 Port
ON
2 Port
OFF
d. Release the Reset button. The Ready LED will blink once per second
for 5 seconds. This indicates that the serial server is re-booting in
Console Mode.
e. When the serial server has successfully restarted in Console Mode,
the Ready LED will be off and the Port 1 LED will be on.
f. Open the Vlinx™ Manager Software and select Serial Port as the
method to connect to the device.
g. After logging in, click Network.
h. De-select I want DHCP to setup the Network.
i. Re-configure the serial server’s network settings to an address within
the range of your PC’s network setting.
For example, if your PC is configured to the following settings:
IP Address = 192.168.0.1
Network Mask = 255.255.255.0
Default Gateway = 192.168.0.100
Configure the serial server to:
IP Address = 192.168.0.50
Network Mask = 255.255.255.0
Default Gateway = 192.168.0.100
• Save the settings and remove power from the serial server.
• Apply power to the serial server.
• Open the Vlinx™ Manager Software and select “Network” as the
method to connect to the serial server
Link Status of the currently selected serial server is shown on the Login page
of Vlinx Manager. Link status indicates the type of Ethernet connection
between the computer and serial server. It will either display 10BaseT or
100BaseTX in full duplex or half duplex. Link status is dependant on the LAN,
switches, hubs used in the LAN topology.
Section 8 - Description of Serial Server Properties Vlinx VESR4x4 Serial Server
Page 56 of 69 www.advantech-bb.com
The MAC Address is a hardware level address of the serial server that cannot
be changed. It is assigned in the factory. Every Ethernet device manufactured
has its own unique MAC address. The MAC address of each serial server is
printed on the device's label. The MAC address of each device is shown in the
Serial Server Information Table. The MAC address of the currently selected
serial server is also displayed on the Login page of Vlinx Manager.
The Model number of the currently selected serial server is displayed on the
Login page of Vlinx Manager.
Network Protocols available for use on VESP211 serial servers include TCP,
UDP, VCOM and Paired Mode.
Network Watchdog controls the duration of network inactivity when a
network connection is determined idle and causes the connection to be forced
closed. The range is 1 through 65535 milliseconds.
Paired Mode enables two serial servers to operate across the network like a
"wire replacement" between two serial devices. (Paired Mode is also called
serial tunneling.) Serial devices connected to serial servers on each end of the
link can communicate as it they were connected by a serial cable.
• For Paired Mode to work one serial server must be configured as a TCP
server and the other as a TCP client.
• The serial server configured as the TCP client initiates connections. You
must set up the IP address and port number of the server that you want
the client (serial server) to communicate with. You also select whether
you want the serial server to connect at power up or only when it
receives data from the device connected to its serial port.
• The serial server configured as a TCP server waits for connections to be
initiated by another network device. You must set up the TCP port
number on which it will listen for connections and set the maximum (up
to eight) number of simultaneous connections it will accept. You can filter
the connections it will accept based on specific IP addresses or ranges of
IP addresses that you specify.
Password. When you first receive the VESP211 serial server from the factory
the password is blank so that you can initially access the serial server without
entering a value into this field. To ensure security you should create and save
a password the first time you configure the serial server. After a password has
been set up it must be entered each time you login to Vlinx Manager. The
password is used to access the configuration pages from the Vlinx Manager
Login page and can be changed from the General page.
Serial Interface Modes. Four serial interface modes of operation are:
• RS-232 - Point-to-point serial communications connection used by PC
COM ports and many other systems. Capable of baud rates up to 115.2
Section 8 - Description of Serial Server Properties Vlinx VESR4x4 Serial Server
Page 57 of 69 www.advantech-bb.com
kbaud over short distances (typically 50 feet). Typically uses DB-9
connectors but terminals are also used on VESP211 serial servers.
• RS-422 - Point-to-point communications using a transmit pair and a
receive pair. RS-422 can operate at higher speeds and longer distances
than RS-232. Typically uses two shielded twisted pairs and screw
terminals but DB-9 connectors are also used on VESP211 serial servers.
• RS-485 2-wire - Similar speed and distance specifications as RS-422
but allows multidrop connections. Typically uses one shielded twisted pair
and screw terminals but DB-9 connectors are also used on VESP211
serial servers.
• RS-485 4-wire - Similar speed and distance specifications as RS-422
but allows full-duplex connections. Typically uses two shielded twisted
pairs and screw terminals but DB-9 connectors are also used on VESP211
serial servers..
Select the appropriate serial interface mode for the type of connection
between the serial server's serial port and the device connected to it.
Note: Refer to the Appendix D for connector and pin-out details.
Serial Server Name is a unique name assigned to the serial server. It must
be a valid hostname as defined by RFC-952 and RFC-1123. The rules are:
• It must consist only of the characters "A" to "Z", "a" to "z", "0" to "9" or
"-"
• It can start or end with a letter or a number, but it must not start or end
with a "-".
• It must not consist of all numeric values.
The Server Serial Port Number of the currently selected port is shown in
this field. For more information refer to the TCP/UDP Ports table in Appendix
B, which shows the ports used for several modes of operation.
Serial Watchdog controls the duration of serial inactivity when the serial port
is determined idle and causes all connections for that serial port to be forced
closed. The range is 1 through 65535 milliseconds.
The Subnet Mask specifies the network mask the serial server uses when on
a subnetted network.
• For a Class A network (IP addresses 0.0.0.0 through 127.255.255.255)
the default subnet mask is 255.0.0.0.
• For a Class B network (IP addresses 128.0.0.0 through 191.255.255.255)
the default subnet mask is 255.255.0.0
• For a Class C network (IP addresses 192.0.0.0 through 233.255.255.255)
the default subnet mask is 255.255.255.0
Section 8 - Description of Serial Server Properties Vlinx VESR4x4 Serial Server
Page 58 of 69 www.advantech-bb.com
• For a Class D network (IP addresses 224.0.0.0 through 239.255.255.255)
and Class E Networks (IP addresses 240.0.0.0 through 255.255.255.255)
the subnet mask is ignored.
• VESP211serial servers come from the factory with a default subnet mask
value of: 255.255.255.0
TCP (Transmission Control Protocol) provides reliable connection-oriented
network communication with error checking. In TCP mode the serial server can
be configured as a client or a server.
TCP client. When the serial server is configured as a TCP client it initiates
connections with a server on the network. You must set up the IP address and
port number of the server that you want the client (serial server) to
communicate with. You also select whether the serial server is to connect at
power up or only when it receives data from the device connected to its serial
port.
TCP server. When the serial server is configured as a TCP server it waits for
connections to be initiated by another network device. You must set up the
TCP port number that it will listen to for connections and set the maximum (up
to eight) number of simultaneous connections it will accept. You can filter the
connections it will accept based on specific IP addresses or ranges of IP
addresses that you specify.
UDP (User Datagram Protocol) enables applications using UDP socket
programs to communicate with the serial ports on the serial server. UDP
protocol provides connectionless communications, which allows data to be
broadcast to and received from multiple nodes on a network. (Because it is a
connectionless protocol UDP does not guarantee the delivery of a datagram
and the datagram is only be sent once.)
• In UDP mode, if you want to control what network node receives data,
you must specify the IP address and UDP port the data will be sent to.
You can choose to send to:
• Nobody
• All nodes at a specific UDP port number. (This is called broadcast.)
• Specific IP addresses and UDP port numbers. (This is called unicast.)
• A range of IP addresses and UDP port numbers. (This is called unicast
range.)
• You can also configure the serial server to receive from nodes on the
network using the same list of configuration options.
• When the Network Protocol is set to VCOM (Virtual COM Port) the serial
server communicates over the network with a PC, acting as a remote
COM port for the computer.
Section 8 - Description of Serial Server Properties Vlinx VESR4x4 Serial Server
Page 59 of 69 www.advantech-bb.com
• Both the serial server and the computer must be configured for VCOM
operation. Virtual COM ports can be set up on the PC using the Vlinx
Manager software.
Sewer Name MODEL NUMBER Serial Number Printed on me label Password password field is blank from facinry DHCP Enable IP Address BASEDOM DHCPSERVER lfa DHCP assignmemis noravailahle. the device will damn: 159.2“.10235 Met Mask 155155.01) Gateway 169.25A.l.1 Firmware Version xxx [CunentVersianl Hardware Version x1 (Curreanelsion) Pan 1 Serial port mode lS-ZSZ Baud Kale mo nara hits 3 Parity None smp hits 1 Flow Comml None Protocol TCP Serial «menu: 0 seconds TCP aliveiimeout 0 minules Connection Mode Server Delimiler "EX 1 00 Delimi r "EX 2 00 Remove delimiters Disable Forte mnsmit 0 ms lmer-charadertimer Dms C haraner (mm! 0 Max connecfion l www ddvdmm [17le mm
Section 9 - Appendix Vlinx VESP211 Serial Server
Page 61 of 69 www.advantech-bb.com
SECTION 9
Appendix
Appendix A: Default Server Settings
Setting Default Value
Server Name
MODEL NUMBER
Serial Number
Printed on the label
Password
password field is blank from factory
DHCP
Enable
IP Address
BASED ON DHCP SERVER
If a DHCP assignment is not available, the device will default to 169.254.102.39
Net Mask
255.255.0.0
Gateway
169.254.1.1
Firmware Version
X.X.X (Current Version)
Hardware Version
X.X (Current Version)
Port
1
Serial port mode
RS-232
Baud Rate
9600
Data bits
8
Parity
None
Stop bits
1
Flow Control
None
Protocol
TCP
Serial timeout
0 seconds
TCP alive timeout
0 minutes
Connection Mode
Server
Delimiter HEX 1
00
Delimiter HEX 2
00
Remove delimiters
Disable
Force transmit
0 ms
Inter-character timer
0 ms
Character count
0
Max connection
1
Hardware and Devlie Senal Server included auessories c0 c0 mm thx Managersmrware var X») {32/54 00 2003 Se Wmd0ws 7 (32/54 mt) Opn'anal Auessories Came 232NM9 NuH Modem Cr0ssovercame10rDTE m DTE connernnn Canfignran'on Opn'ons Vra senar pan Using Vlmx Managerwa a senar (unnemon, (press Resemumn m enleannsnle Mode) Vla netwnrk Using Vlmx Managerwa a Ememetwnnenwn Using a web bmwsevsum as \nrernerEprorerzs 019 0erelnx3 e and we! Software thx Managermr X») {32/54 my 2003 Server(32/54 mu, Vrsra (32/54 00), 2003 Server(32/64 00), senar server (nnfigmamm Environment Operanng 740 m 30 °C (740 m17fi“F) Temperature smrage Tempemmve 740 m 35 "c (740 001899 Operanng Mummy 10 00 95% nonrmndensmg Maxrrnurn Ammem Surveundmg Arrremp Certifiun'ons UL 50950 rcc PaRISUaSSA CE NEMA T52 Endasm Ranng WED Mnurmng Panel mount Drmensrnns (VESP211)mamhody 21x31x0.87m(52><79><22(m] \ndudmg="" mounnng="" labs="" 29x31x0.37m(74x79x22rm1="" powersupply="" erage="" reqwemems="" 10="" 00="" 30="" vdc="" powercnnsumpmn="" 2="" 5="" w="" max="" terminal="" bla(ks="" www="" advantedrrbb="" mm="">
Section 9 - Appendix Vlinx VESP211 Serial Server
Page 62 of 69 www.advantech-bb.com
Appendix B: Product Specifications
General Specifications
Hardware and
included accessories
Device
Serial Server
CD
CD with Vlinx Manager software for
XP (32/64 bit), 2003 Server (32/64 bit), Vista (32/64 bit), 2008 Server (32/64 bit),
Windows 7 (32/64 bit)
Optional Accessories
Cable
232NM9 Null Modem Crossover Cable for DTE to DTE connection
Configuration Options
Via serial port
Using Vlinx Manager via a serial connection, (press Reset button to enter Console
Mode)
Via network
Using Vlinx Manager via a Ethernet connection
Using a web browser such as Internet Explorer 7,8 or 9 or Firefox 3.6 and over
Software
Vlinx Manager for
serial server
configuration
XP (32/64 bit), 2003 Server (32/64 bit), Vista (32/64 bit), 2008 Server (32/64 bit),
Windows 7 (32/64 bit)
Environment
Operating
Temperature
-40 to 80 °C (-40 to 176 °F)
Storage Temperature
-40 to 85 °C (-40 to 185 °F)
Operating Humidity
10 to 95% non-condensing
Maximum Ambient
Surrounding Air Temp
80 °C
Certifications
UL 60950
FCC
Part 15 Class A
CE
NEMA TS2
Enclosure
Rating
IP30
Mounting
Panel mount
Dimensions
(VESP211) main body
2.1 x 3.1 x 0.87 in (5.2 x 7.9 x 2.2 cm)
Including mounting
tabs
2.9 x 3.1 x 0.87 in (7.4 x 7.9 x 2.2 cm)
Power Supply
Voltage Requirements
10 to 30 VDC
Power Consumption
2.5 W max
Terminal Blocks
Wire Size 28 to 16 AWG
Wire Type Copper Wire Only
Tightening Torque 5 KG-CM
Wire Temp Rating 105 °C Minimum
Sized for 60 °C Ampacity
Note: One Conductor Per Terminal
Swikhes Rese‘bumn Indicamrs Sena‘LED Ememe‘LED Ready LED Cnnnecmrs IOBasST/IOUBESETX Ememet SEHal DC Power Ham m 000 m 2 semnds my hardware reset Ham m (012 m 10 sewnds Vortmvsme M nuetyde pnwerm exilConso‘e Mode) Ham w my more men 10 semnds m veselm lacmry nevamrs C010 Gveen On: onopen Bhnk:Da|anaffi( Veuow anveen Bhnk :Dala 0am: cmar:eveen Bhnk (me pelsewnd) 0W:SystemNOTOK Smgle m 45F (a pm) vmzu; 039 (onnemr VESPZILZ 009 (onnedar v2522114xs: levmmal mm torment)! ham mnnemm Made Se‘etnnn R5132 hues RS422 hues R5435 ImeS (2 We) R5435 ImeS (4 We) Baud Rakes Serial Inmflates Dem 005 Pauly smp bus Haw mm 05422405 masmg 11574221405 myrmnanon RS405 0am (mum 11572321422405 snfiwave se‘etlab‘e TXD, RXD, RTS, CTS, DTR, DSR, DCD, GND TXDAH, TXDBH), RXDAH, RXDBH), 6ND Da1a('),Dara(+I,GND TXDAH, TXDBH), RXDAH, RXDBH), 6ND 75, 150, 300, 600, 1200, 2400, 4000, 7200, 9600, 14400, 19200, 20000,30400,57600115200230400 5, 6, 7, s Nana, even, 000, mark, spam 1, 1.5, 2 Nana, RTS/CTS, xomxorr 210le ohm pul‘ups and pquowns 120 Mm mm usemnsualleu jumpels Auln (onlmlvla MCU www advantechrbb com
Section 9 - Appendix Vlinx VESP211 Serial Server
Page 63 of 69 www.advantech-bb.com
Controls, Indicators and Connector Specifications
Switches
Reset button
Hold in for 0 to 2 seconds for hardware reset
Hold in for 2 to 10 seconds for Console Mode (Do a hardware reset
or recycle power to exit Console Mode)
Hold in for more than 10 seconds to reset to factory defaults
Indicators
Serial LED
Color = Green
On = Port open
Blink = Data traffic
Ethernet LED
Color = Yellow or Green
On = 100BaseTX
Off = 10BaseT
Blink = Data traffic
Ready LED
Color = Green
Blink (once per second) = System OK
Off = System NOT OK
Connectors
10BaseT/100BaseTX Ethernet
Single RJ-45F (8 pin)
Serial
VESP211: DB9 connector
VESP211-232: DB9 connector
VESP211-485: terminal block connector
DC Power
barrel connector
Serial Interface Specifications
Serial Interfaces
Mode Selection
RS-232/422/485 software selectable
RS-232 lines
TXD, RXD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 lines
TXDA(-), TXDB(+), RXDA(-), RXDB(+), GND
RS-485 lines (2 wire)
Data(-), Data(+), GND
RS-485 lines (4 wire)
TXDA(-), TXDB(+), RXDA(-), RXDB(+), GND
Baud Rates
75, 150, 300, 600, 1200, 2400, 4800, 7200, 9600, 14400, 19200,
28800, 38400, 57600, 115200, 230400
Data Bits
5, 6, 7, 8
Parity
None, even, odd, mark, space
Stop bits
1, 1.5, 2
Flow control
None, RTS/CTS, XON/XOFF
RS-422/485 biasing
Auto 1K ohm pullups and pulldowns
RS-422/485 termination
120 ohm with user-installed jumpers
RS-485 data control
Auto control via MCU
Mammy Sena‘ Memory ma perpnn Network Memory 4 KB l/P PortAddresses 5300 HeaMeamcmgwauan semng m TCP Made a e Paw Mode) asea VESPle upnaxe Nemark LAN 10mm Mhps Aumrdemmng 1oaase1 m lflflBaseTX Cammunican'ons "2mm Physical Ethemel \EEE 302 3 aumrdetedmg 5 auto MDI/MDX IOBaseT and IOOBaseTX Layer sunnards Prommls Suppomd m, wwwnmm, HTTP 1 n, \CMP/PWG, DHCP/BOOTP w Made saueuHcp TCP/UDP Usemenname um UnmastarMumease Cannem‘on Mndes Servev, Chem vcom, Paved Clientcannemon Mpowevuporupon data amva‘ Seanh Sena‘ mthOM and Ememeramasearm orspeemc w magnum Dwsp‘ay PC w, pmg, xesn/COM, save tesmmflg (textreadame) Firmware Upgrade Vwa seua‘, Ememetoraum web seam Charamr mum 1m 3192 Delimitars Hex] mmrr HexZ m to FF Timeouts \anhavamev 1m 5535 ms Sena‘ 1m 5535 ms TCP keepahve Forte wansrmt Max (havamenmml 1m 5535 mm 1m 5535 ms 1m 3192 bytes www advanree h'bb mm
Section 9 - Appendix Vlinx VESP211 Serial Server
Page 64 of 69 www.advantech-bb.com
Network Specifications
Memory
Serial Memory
8 KB per port
Network Memory
4 KB
I/P Port Addresses
5300
Heartbeat & Configuration setting in TCP Mode (i.e. Pair Mode)
8888
VESP211 update
Network
Communications
LAN
10/100 Mbps Auto-detecting 10BaseT or 100BaseTX
Network Physical
Layer Standards
Ethernet
IEEE 802.3 auto-detecting & auto MDI/MDX 10BaseT and 100BaseTX
Protocols Supported
TCP, IPv4, UDP, ARP, HTTP 1.0, ICMP/PING, DHCP/BOOTP
IP Mode
Static, DHCP
TCP/UDP
User definable
UDP
Unicast or Multicast
Connection Modes
Server, Client, VCOM, Paired
Client Connection
At power up or upon data arrival
Search
Serial direct COM and Ethernet autosearch or specific IP
Diagnostics
Display PC IP, ping, test VCOM, save test config (text readable)
Firmware Upgrade
Via serial, Ethernet or auto web search
Character count
1 to 8192
Delimiters
Hex 1
01 to FF
Hex 2
01 to FF
Timeouts
Inter-character
1 to 65535 ms
Serial
1 to 65535 ms
TCP keepalive
1 to 65535 min
Force transmit
1 to 65535 ms
Max character count
1 to 8192 bytes
ao/dep Always dpen verme web servev. ms pnms used lulwnfigmalwn nH‘ne deune usmg a web browser T If H "you wanna use mus method m ednnguye me deer 1mm me ofa NAT, the NAT musme ednngured m myward m mus pen Hump ms poms npen when any senal poms Tms poms used lulwmmumannns wllh the VCOM deer dnvev m 5 "you wanud mmmmg (on "you wanu m mus purl 7000/th Always dpen forseual server ms pnms used lmwnfigmalwn and firmwale upgrade We deune u n Ivy m m 7 N moo/mp This pams dpen wnen senal ponl us These pens are used no transievhandshake hne sme and bleak state m paw me se 4 m Hy m Myou wanna (onneum a palledrmud men will musudrward to these puns scam/Kn This pams dpen wnen senal 90M ‘5 ednnduned lurpawedrmnde sewen NeuAppueame soon/Kn This pams dpen wnen senal mm \s ednnduned lurpawedrmnde sewen NeuAppueame sows/Kn This pams dpen wnen senal part4 \s ednnduned lurpawedrmnde sewen NeuAppueame sa/udp Tnus pams dpen wnen me nelwovk Tnus pams used dydu (onflgule me dewee VorDHCP made (as d T 7000/udp A‘ways open in! seua‘ server Tnese pens are used vdnonnguraudn and nnnwane upgmde Mme de m uyou wam m (onflgure m me senal sewermanage mwmmg eanneendns an man/udp m be vecewed www advantechrbb com
Section 9 - Appendix Vlinx VESP211 Serial Server
Page 65 of 69 www.advantech-bb.com
TCP/UDP Ports Table
Port Description Comments
80/tcp
Always open for the web server.
This port is used for configuration of the device using a web browser.
This port is always open no matter how you configure the device.
If you want to use this method to configure the device from outside of a
firewall, then a firewall must allow incoming connections to this port.
If you want to use this method to configure the device from the outside
of a NAT, the NAT must be configured to forward to this port.
771/tcp
This port is open when any serial port is
configured for VCOM mode.
This port is used for communications with the VCOM device driver
installed on the computer. This port is open only if you configure any
serial port for VCOM mode.
If you want to use VCOM from outside of a firewall, then you must allow
incoming connections on this port.
If you want to use VCOM from outside of a NAT, then you must forward
to this port.
7000/tcp
Always open for serial server
configuration over TCP.
This port is used for configuration and firmware upgrade of the device
using the serial server manager. This port is always open no matter
how you configure the device.
If you want
to configure the serial server from outside of a firewall using
the serial server manager, then the firewall must be configured to allow
incoming connections on 7000/tcp and allow packets addressed to
7000/udp to be received
Note: Configuring over 7000/udp is not supported.
60000/tcp
This port is open when serial port 1 is
configured for paired-mode server.
These ports are used to transfer handshake line state and break state in
paired mode configuration. These ports are open only if you configure
the port for paired-mode server. Note that serial port 1 uses 60000/tcp,
serial port 2 uses 60001/tcp, serial port 3 uses 60002/tcp and serial port
4 uses 60003/tcp. If a port is not configured for paired-
mode server, then
the corresponding port is not open.
If you want to connect to a paired-
mode server from outside of a firewall,
then you must allow incoming connections on these ports.
If you want to connect to a paired-mode server from outside of a NAT,
then you must forward to these ports.
60001/tcp
This port is open when serial port 2 is
configured for paired-mode server.
Not Applicable
60002/tcp
This port is open when serial port 3 is
configured for paired-mode server.
Not Applicable
60003/tcp
This port is open when serial port 4 is
configured for paired-mode server.
Not Applicable
68/udp
This port is open when the network
mode is DHCP.
This port is used if you configure the device for DHCP mode (as
opposed to Static IP). It is used to communicate with the DHCP server.
This should only be used inside of a firewall or NAT.
7000/udp
Always open for serial server
configuration over UDP.
These ports are used for configuration and firmware upgrade of the
device using the serial server manager. These ports are always open no
matter how you configure the device.
If you want to configure the serial server from outside of a firewall using
the serial server manager, then the firewall must be configured to allow
incoming connections on 7000/tcp and allow packets addressed to
7000/udp to be received
ans/nap A‘waysopenlovsena‘servevmsmvery. Thlspamsusedmrmsmvevmgsena‘sewers Tms pnms always npen n Note The device msmvery nmywovks on a we not need my be (onfigured m a News“ N NAT ("her User’specwfled puns omencv and UDP puns maybe apen depenmng an wnaeyou spemiy m T Hy m Myou wanna use mese ome musuarwam to these puns www advantechrbb com
Section 9 - Appendix Vlinx VESP211 Serial Server
Page 66 of 69 www.advantech-bb.com
8899/udp
Always open for serial server discovery.
This port is used for discovering serial servers. This port is always open
no matter how you configure the device.
Note: The device discovery only works on a local subnet. The port may
not need to be configured in a firewall or NAT.
Other
User-specified ports.
Other TCP and UDP ports may be open depending on what you specify
for the device configuration. THESE ARE THE PORTS SPECIFIED IN
THE CONFIGURATION FILE.
If you want to use these other ports from outside of a firewall, then you
must allow these ports.
If you want to use these other ports from outside of a NAT, then you
must forward to these ports
1.475 [37.491 356 [3001 JJ an (2)0 [5.58] + .262 [665] .610 ([549! 0.5100 [1895] L543 (2)0 * 1932 l .94 (2X) |25J101 1.5m (2x: [41.051 3125 79.38 000 (2)0 555 Egscmnlvlm [27.56] |_J .755 ( 2'50] «)0 ) (2)0 (13:3) fig ( ( [63.50] ' 2070 $57 www.advantechrhh,com
Section 9 - Appendix Vlinx VESP211 Serial Server
Page 67 of 69 www.advantech-bb.com
Appendix C: Dimensional Diagram
Figure 46. Dimensional Diagram of a VESP211 Serial Server (dimensions in inches & millimeters)
12365 6789 EDCBA www ddvd"!k‘( llrbb mm
Section 9 - Appendix Vlinx VESP211 Serial Server
Page 68 of 69 www.advantech-bb.com
Appendix D: Connector Pinouts
DB-9M Connnector
DB-9M Pin RS-232 Direction (RS-232) RS-422/485 4-Wire RS-485 2-Wire
1 DCD Input RDA (-) ---
2 RD Input RDB (+) ---
3 TD Output TDB (+) Data B (+)
4 DTR Output TDA (-) Data A (-)
5 GND --- GND GND
6 DSR Input --- ---
7 RTS Output --- ---
8 CTS Input --- ---
9 --- --- --- ---
Terminal Block
Terminal RS-422 RS-485
A TDA (-) Data A (-)
B TDB (+) Data B (+)
C RDA (-) ---
D RDB (+) ---
E GND GND
WWW WWW RXDdIcIA 4567B mm. um 1 TX+ WmteVGreen 1 2 TX+ Gveen 2 3 RX+ WmerlangE 3 4 anused We 4 5 anused meB‘ue 5 e M Orange a 7 anused Wmeerwn 7 a anused Brown a www advantm hrhb mm
Section 9 - Appendix Vlinx VESP211 Serial Server
Page 69 of 69 www.advantech-bb.com
Note 1: In the RS-422 mode, TX lines are outputs and RX lines are inputs. Connect the serial server TDB(+)
line to the RDB(+) line of the serial device, and the serial server TDA(-) to the RDA(-) of the serial
device.
Note 2: Ground is signal ground and provides a common mode reference for the RS-422 Receiver and
Transmitters.
Standard Ethernet Cable RJ-45 Pin-out
RJ-45 Pin Signal Wire Color RJ-45 Pin
1
TX+
White-Green
1
2
TX+
Green
2
3
RX+
White-Orange
3
4
Not used
Blue
4
5
Not used
White-Blue
5
6
RX-
Orange
6
7
Not used
White-Brown
7
8
Not used
Brown
8
